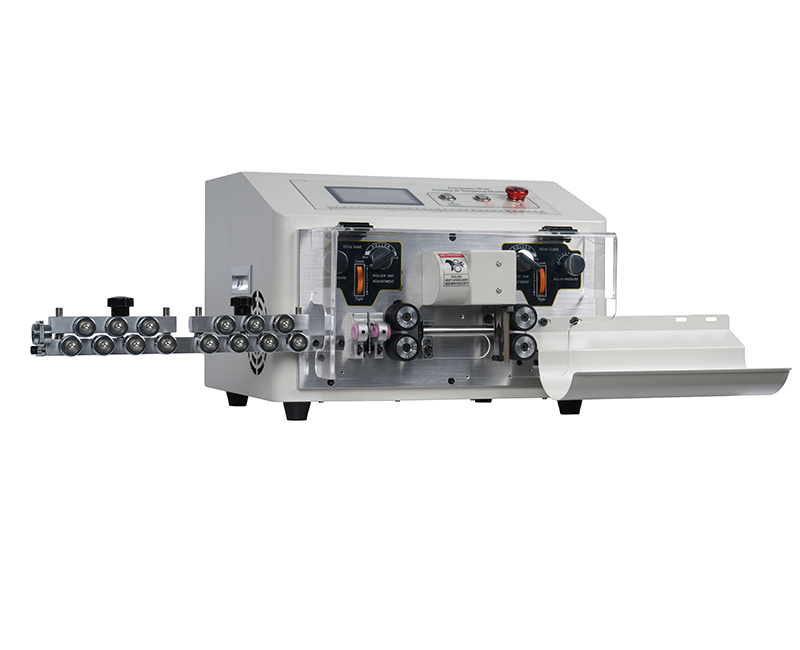

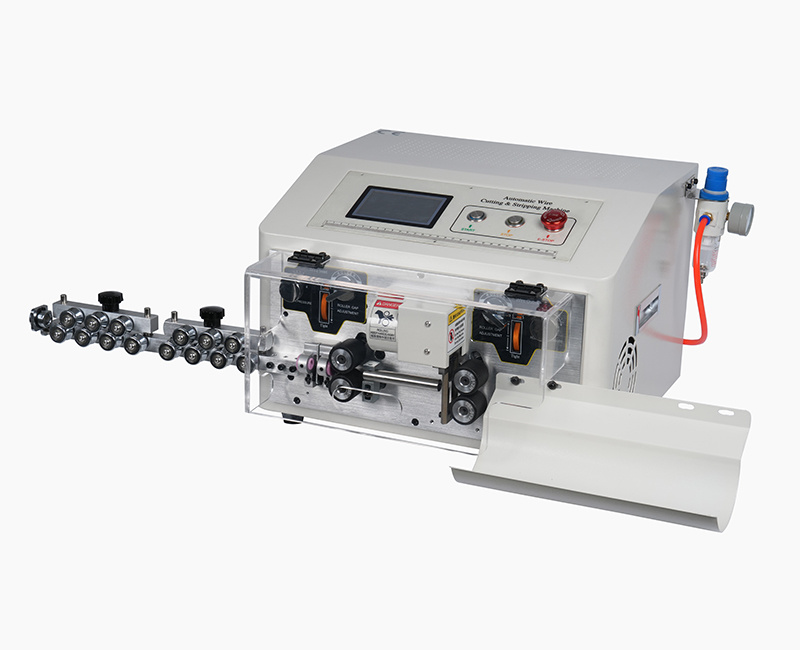

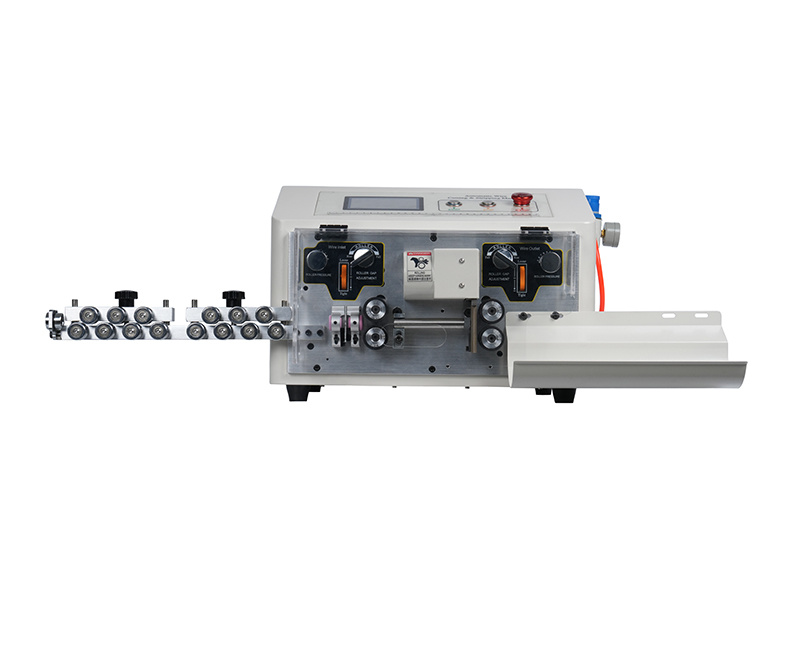

Round sheath wire stripper with touch screen
Type：
TOP68-HT2/S
A full range of automatic terminal equipment is located in the Top-level. Professional customization of wiring harness equipment - just find the Top-level.
Keyword： Round sheath wire stripper with touch screen
Classify：
Detail
Video introduction:
Parameter introduction:
| Weight | 28KG |
| Power | 450W |
| Electrical connection | 110V/220V 50HZ/60HZ |
| Operation interface | 4.3 inch Chinese and English switching touch screen display |
| Machine dimension | 460*470*325mm |
| Wire length range | 1～9999mm |
| Strip length | Front end |
| 0-150;rear end | 0-100mm |
| Length accuracy | ± (0.002xL)mm |
| Wire cross section | Maximum outer diameter 10mm (Round sheath wire) |
| Max conduit inside diameter | ￠11mm |
| Wire material | PVC,Teflon,Braided,Fiberglass wire |
| Blade material | hard tungsten steel |
| Transport speed | (L=200MM piece/hour） 2000-3000 pieces |
| Driving mode | four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step) |
EVERY DETAIL
is crafted
with ingenuity and intelligenc

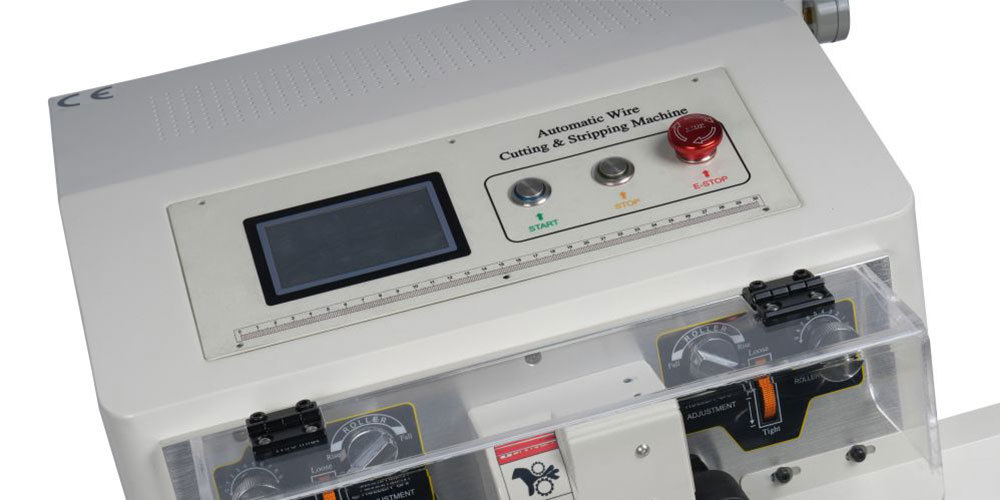

| 01 | Control Panel |
Fully intelligent operating system, easy to debug,easy to operate, and easy to set up. |

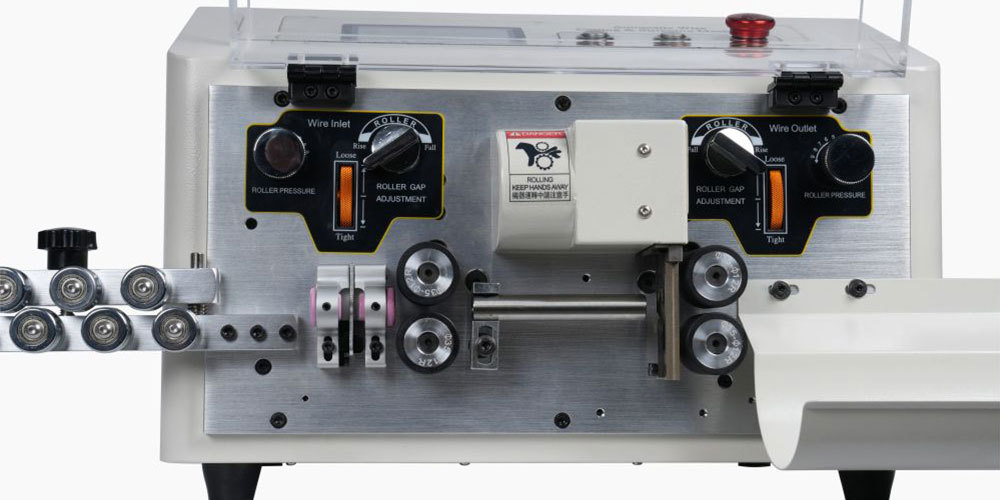

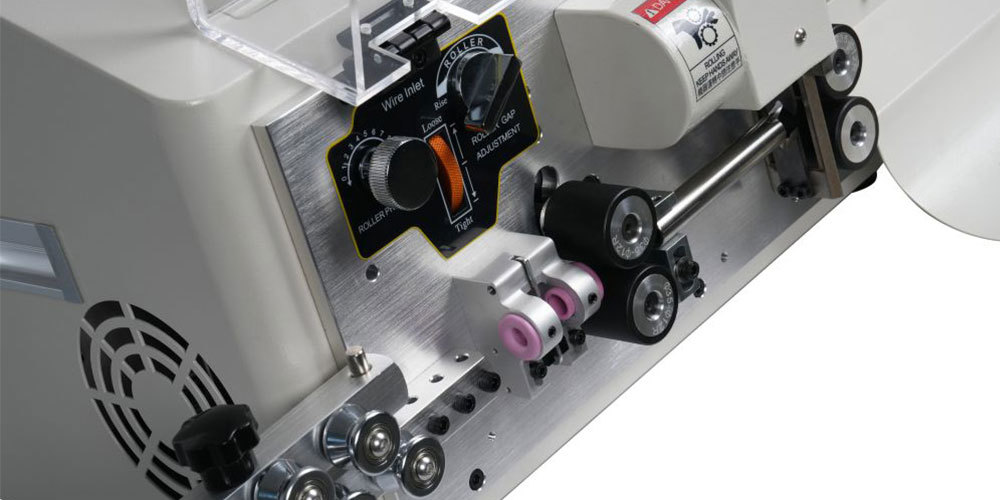

| 02 | Quick Adjustment |
Easy to operate, can directly manually adjust the force of the wire pressing wheel without the need for other tools. |

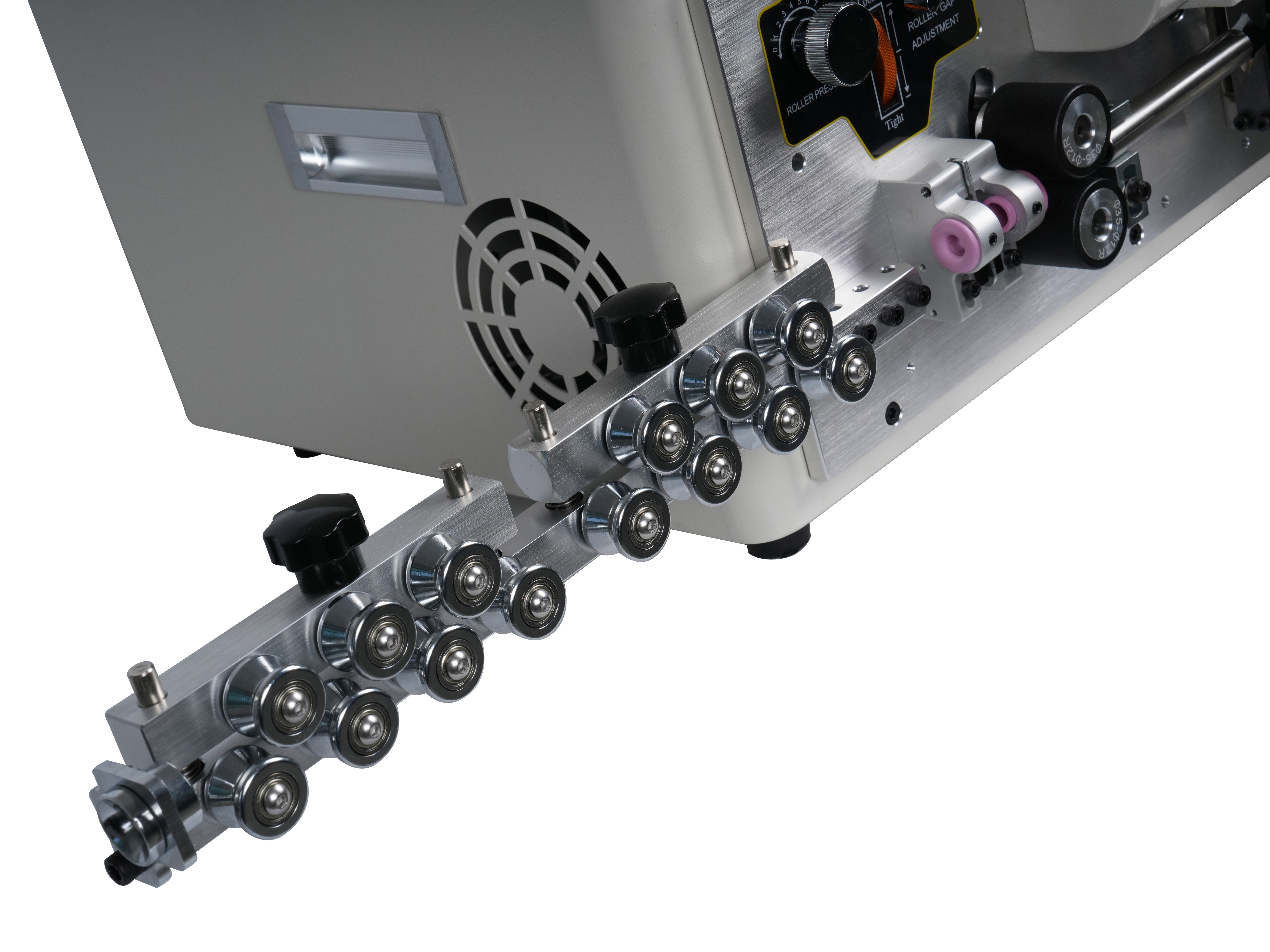

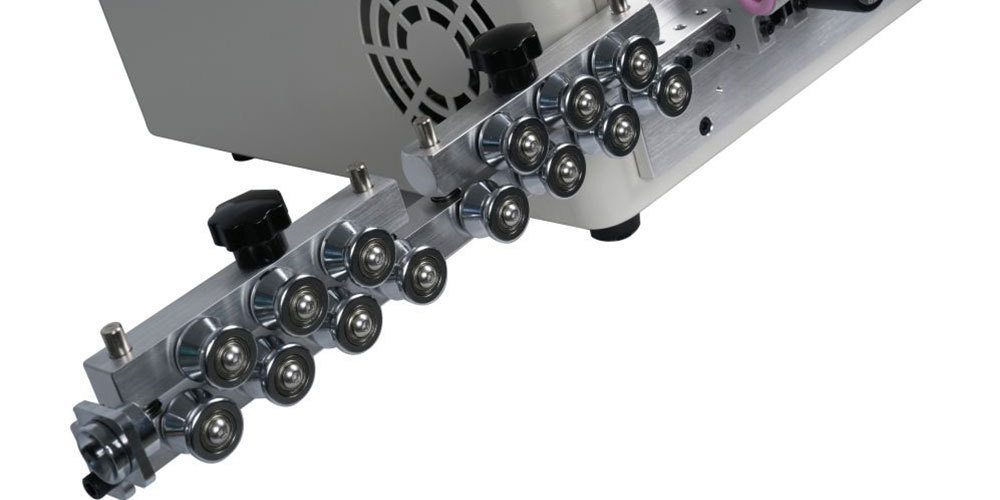

| 03 | Wire Straightener |
When processing the wire,there are no surface indentations, which further improves the quality of the processed wire. |
| 04 | Selection of Steel blades |
Cutting wider, larger, and thicker, widely used, with one blade that can be used multiple times |
