Multi-functional pipe 4 wheels
Type：
TOP68-QG-4S
Keyword： Multi-functional pipe 4 wheels
Classify：
Detail
Video introduction:
Parameter introduction:
| Weight | 28KG |
| Electrical connection | 110V/220V 50HZ/60HZ |
| Power | 250W |
| Operation interface | English/Chinese (LCD display) |
| Machine dimension | 460*470*325mm |
| Wire length range | 1～9999mm |
| Length accuracy | ± (0.002xL)mm |
| Max conduit inside diameter | ￠10mm |
| Dimension of flat tube | length 100mm*width 22mm* height 4mm |
| Wire material | yellow wax tube, heat shrinkable tube, sleeve |
| Blade material | hard tungsten steel |
| Transport speed | (L=100MM piece/hour） 10000 pieces |

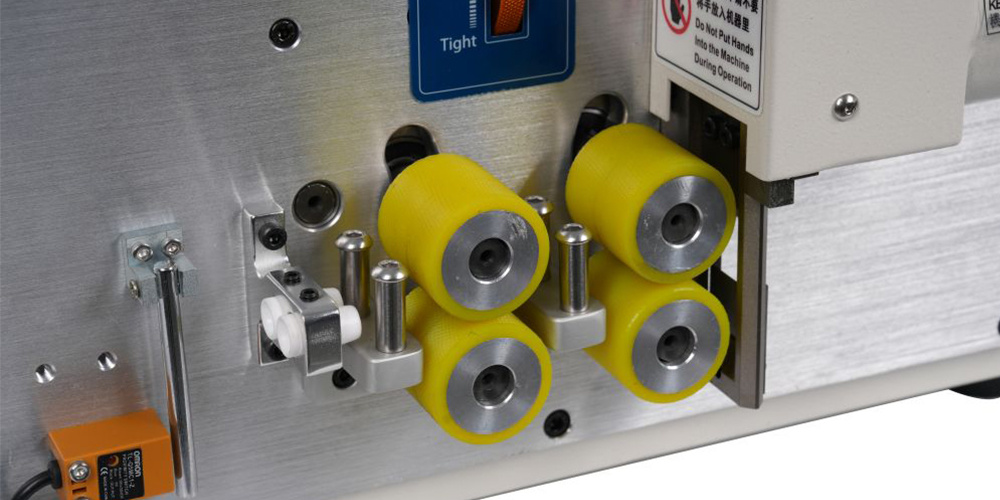

| Driving mode | two-wheel drive (silent hybrid stepper motor, 0.1mm forward per step) |
| Stripping speed | The cutting speed and wire feeding speed can be adjusted respectively.(0 is the slowest, 9 is the fastest） |
