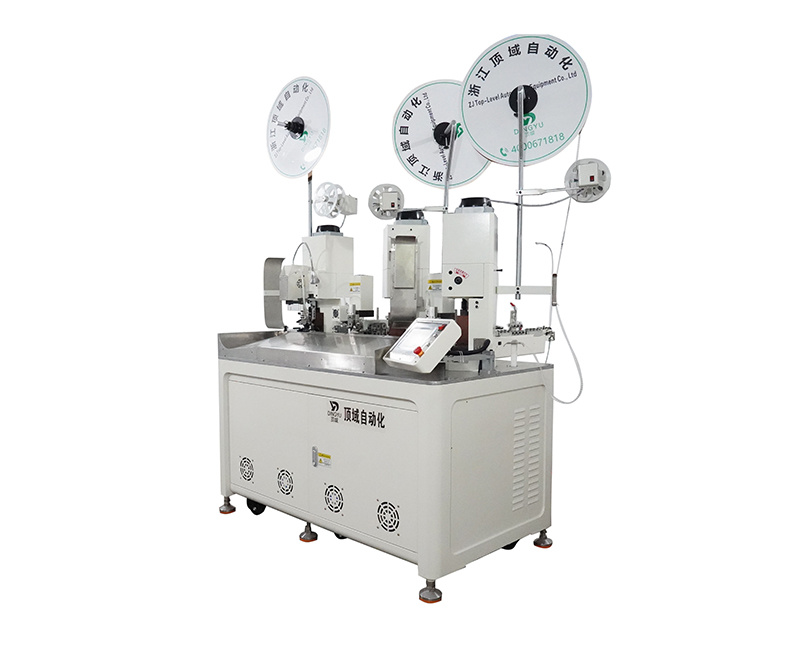

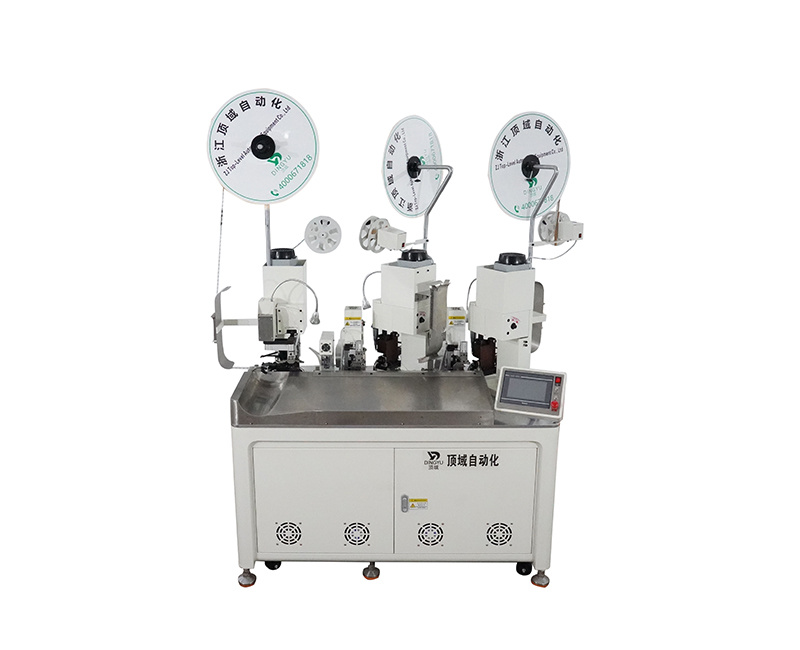

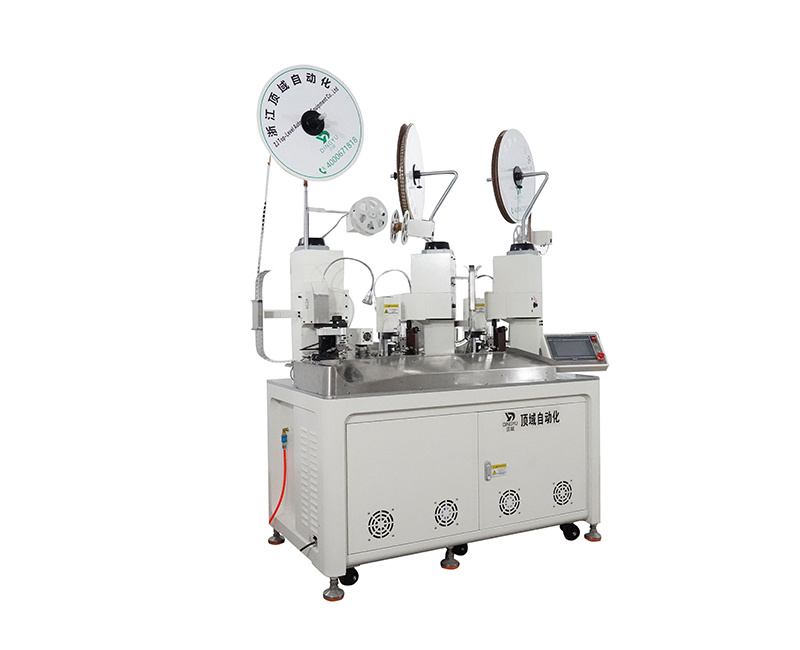

Fully automatic three-end crimping terminal machine
Type：
TOP-03HY
Keyword： Fully automatic three-end crimping terminal machine
Classify：
Detail

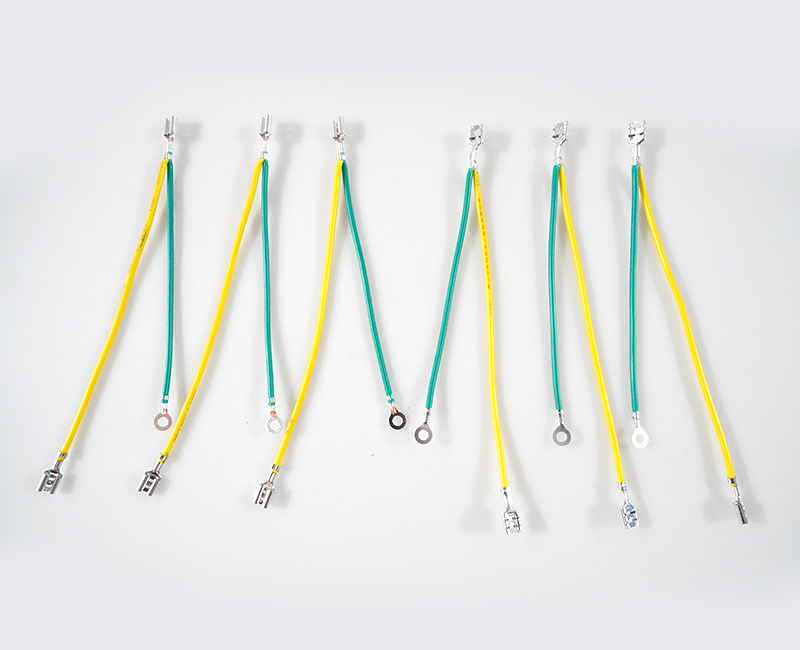

| Function | wire cutting, single-end stripping, double-end stripping, two-end pressing, three-end combined pressing; stripping length/pressing position/knife depth can be set and adjusted. |
| Power supply | AC110V/200V~250V 50/60Hz |
| Weight | 600KG |
| Operation interface | 7 inch Chinese and English switching touch screen display |
| Air pressure | 0.5 -0.6MPA |
| Press capacity | 2.0T |
| Size | L1400mm×W800mm×H1800mm |
| Applicable wire range | AWG #28~#14 |
| Capacity | 3000pcs/hour(When the wire length is 50-100mm), Special wire (ultra-fine soft wire) 2500pcs/hour |
| Cut-off precision | If the wire length is less than 100mm, the error is 0.2+(Lx0.002) If the wire length is more than 100mm, the error is 0.5+(Lx0.002) |
| Wire length | Leave rubber in the middle 41mm~99999mm |
| Stripping length | front end 0.5~8mm, rear end 0.1~10mm |
| Detecting devices | Air pressure detection, wire missing detection, terminal punching detection |
Main configuration:
| Sensor | Taiwan Jiazhun |
| Control system steppermotor | (14 sets) Xuquan |
| Control system steppermotor driver | (14 sets) servo electronics |
| Touch screen | Bike |
| Cylinder | Taiwan AIRTAC |
| Solenoid valve | Taiwan AIRTAC |
| Belt | Ouyite |
| Slide rail | Taiwan Aibosi |
