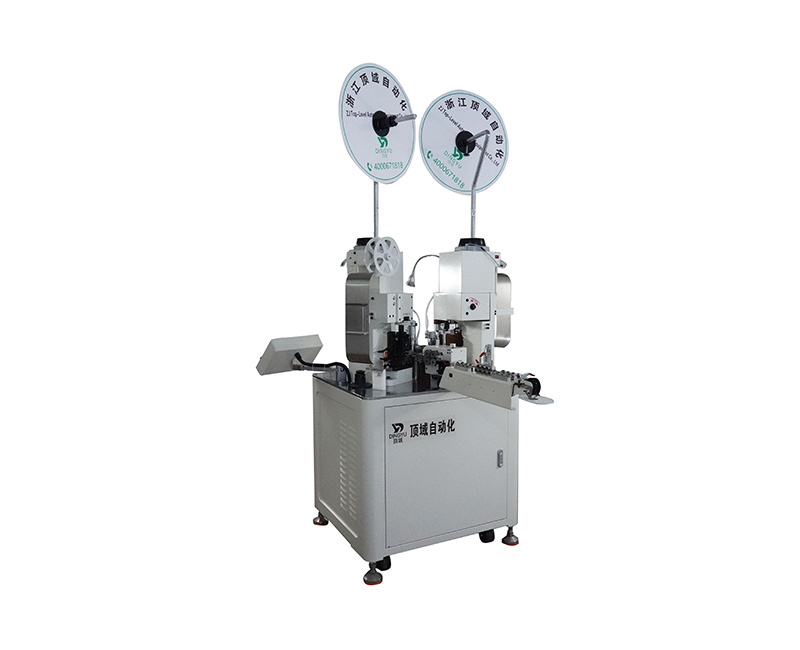

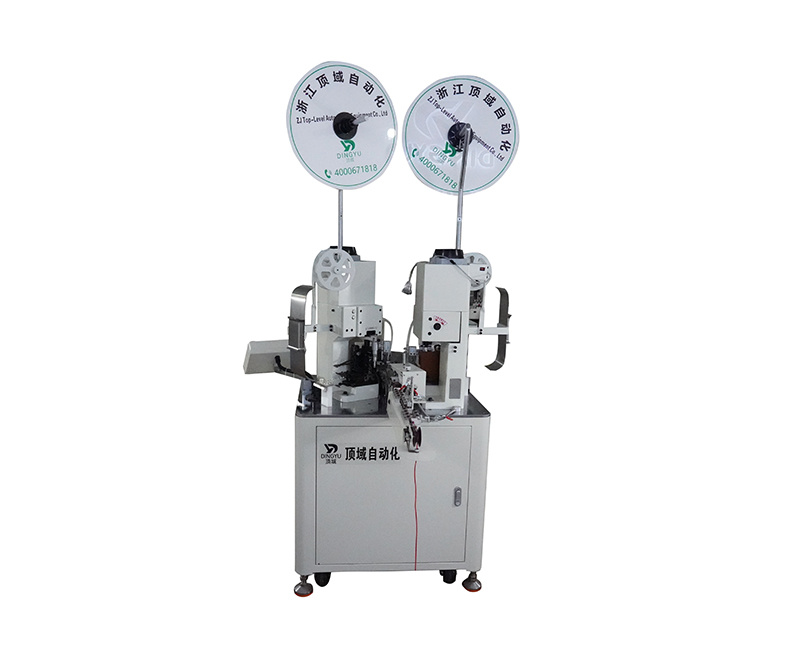

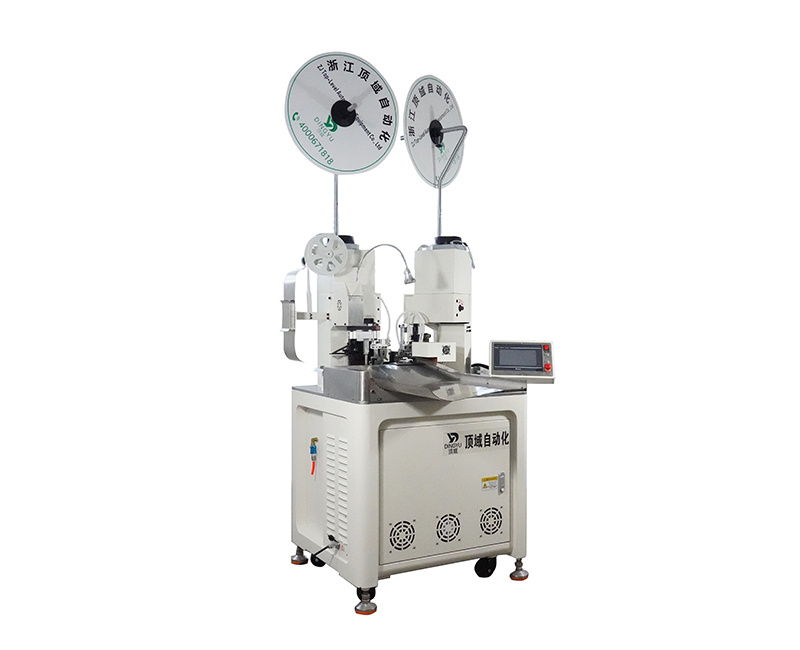

Fully automatic thin wire double-head crimping terminal machine
Type：
TOP-02DBX
Keyword： Fully automatic thin wire double-head crimping terminal machine
Detail
| Function | Wire cutting, single-end stripping, double-end stripping, double-end crimping terminal, one-end crimping terminal, one-end crimping terminal and half-stripping. |
| Power supply | AC110V/200V~250V 50/60Hz |
| Weight | 280KG |
| Operation interface | 7 inch Chinese and English switching touch screen display |
| Air pressure | 0.5 -0.6MPA |
| Press capacity | 2.0-3.0T |
| Size | L700mm×W800mm×H1600mm |
| Applicable wire range | AWG #30~#12 |
| Capacity | 4200pcs/hour(When the wire length is 300mm) |
| Wire length | 50mm~9900mm |
| Stripping length | 0~20mm |
| Cut-off precision | If the wire length is less than 100mm, the error is 0.2+(Lx0.002) If the wire length is more than 100mm, the error is 0.5+(Lx0.002) |
| Detecting devices | Air pressure detection, wire missing detection, terminal punching detection |
Main configuration:
| Sensor | Taiwan Jiazhun |
| Control system (motor) | Xuquan |
| Control system (driver) | Jiayuan Intelligence |
| Touchscreen | Shanghai Bike |
| Cylinder | Taiwan AIRTAC |
| Solenoid valve | Taiwan AIRTAC |
| Belt | Ouyite |
| Slide rail | Taiwan HIWIN |
