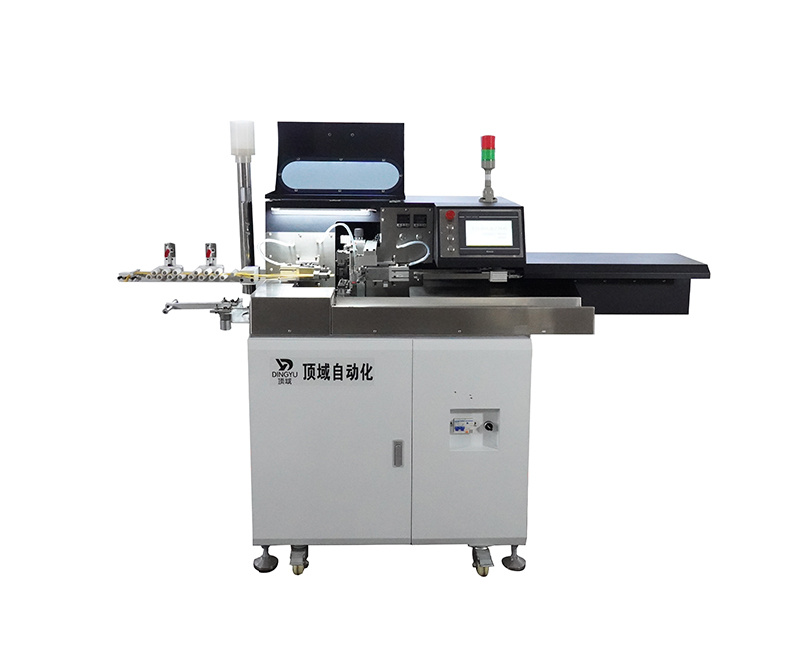

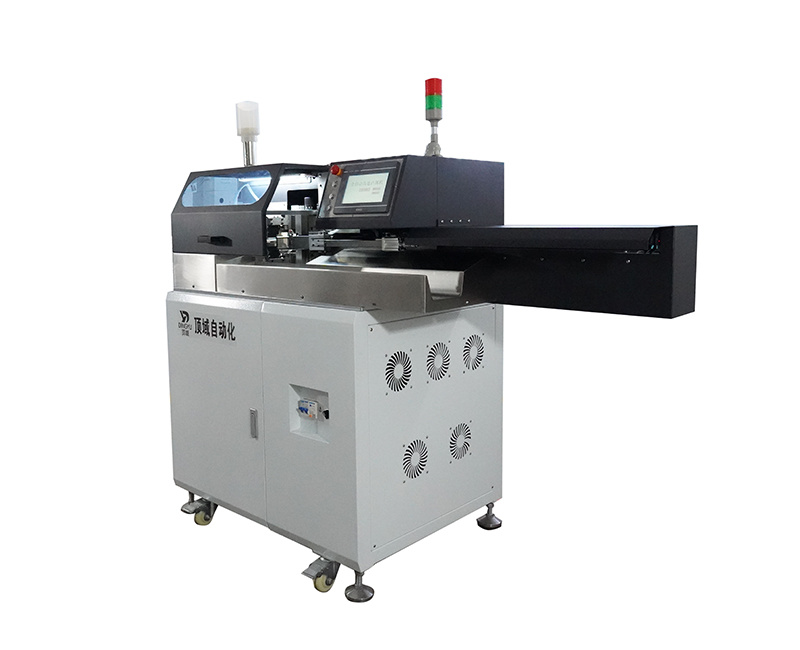

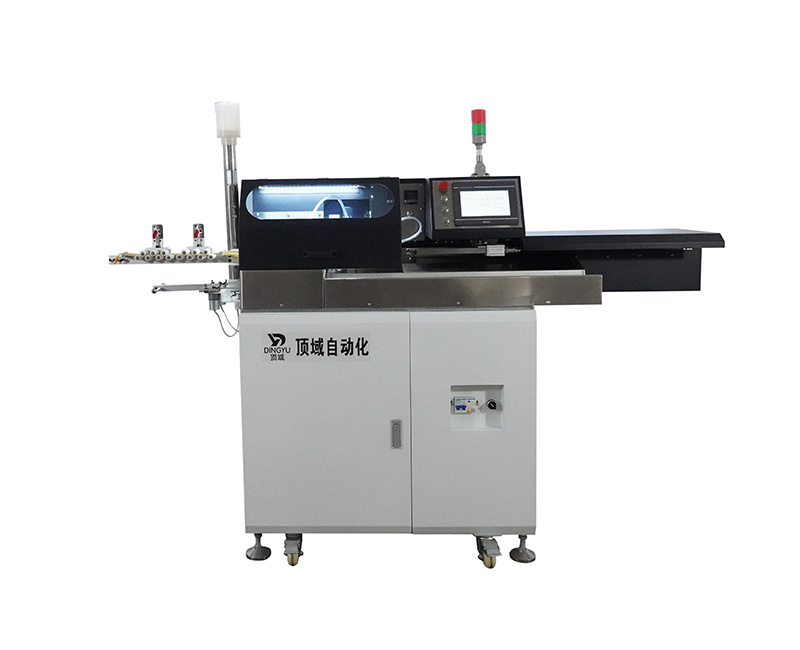

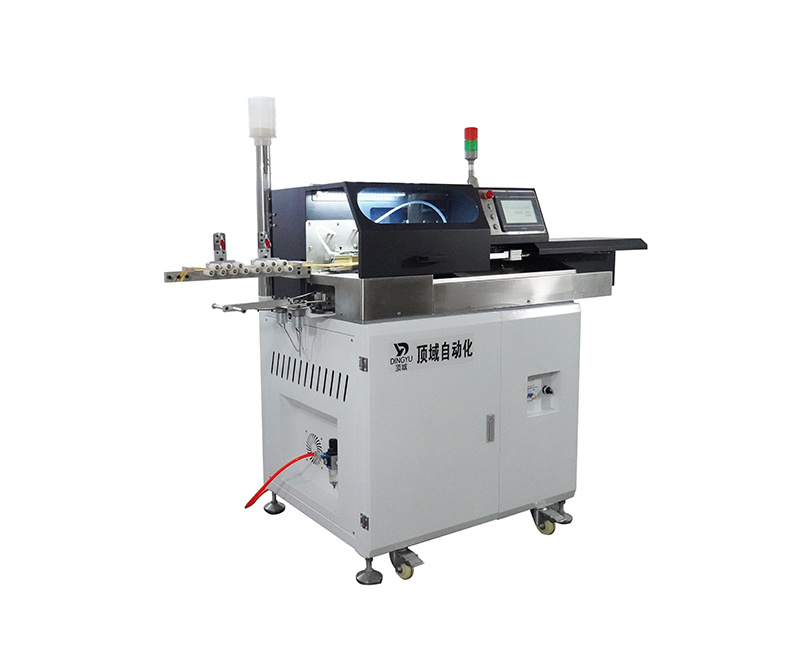

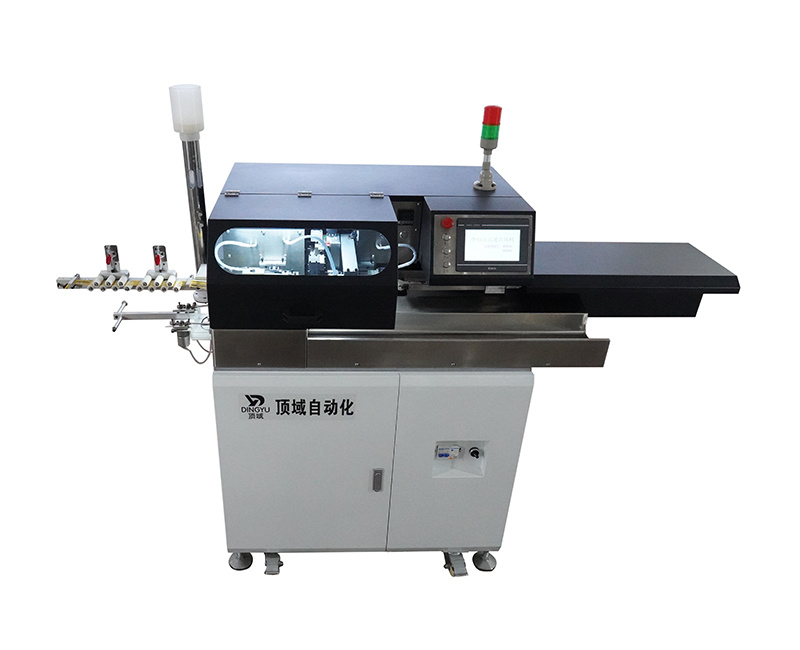

Fully automatic eight-wire double-head twisting tin machine
Type：
TOP-0802N-02ZX
Keyword： Fully automatic eight-wire double-head twisting tin machine
Detail
|
Function |
Wire cutting,single-end stripping, double-end stripping, single-end twisting, double-end twisting, single-end twisting and tin, double-end twisting and tin |
| Power supply | AC110V/200V~250V 50/60Hz |
| Weight | 310KG |
| Operation interface | 7 inch Chinese and English switching touch screen display |
| Air pressure | 0.5-0.6 MPA |
| Size | L840mm×W670mm×H1200mm |
| Applicable wire range | 8 wires (AWG #32~#26) 4wires(AWG#16~#26) |
| Diameter | 0.3mm-3.5mm |
| Capacity | 15000-20000pcs/hour(When the wire length is 100mm) |
| Wire length | 25mm~1000mm(Long wire can be customized) |
| Stripping Length | Front end 0.1~10mm, rear end 0.1~10mm |
| Tin dipping length | 1mm-10mm (can be changed) |
| Twisting length | 3mm-10mm (can be changed) |
| Detecting devices | Air pressure detection, wire missing detection |
Main configuration:
| Sensor | Taiwan Jiazhun |
| Control system stepper motor | (12 sets) Xuquan Baolong 5 sets stepper |
| Control system stepper motor driver | (3 sets) Lesai servo |
| Touch screen | Shanghai Kinco |
| Cylinder | Taiwan AIRTAC |
| Solenoid valve | Taiwan AIRTAC |
| Synchronous belt synchronous pulley | Ouite\Fluoron Bearing: American BOX |
| Slide rail | Taiwan Hiwin |
