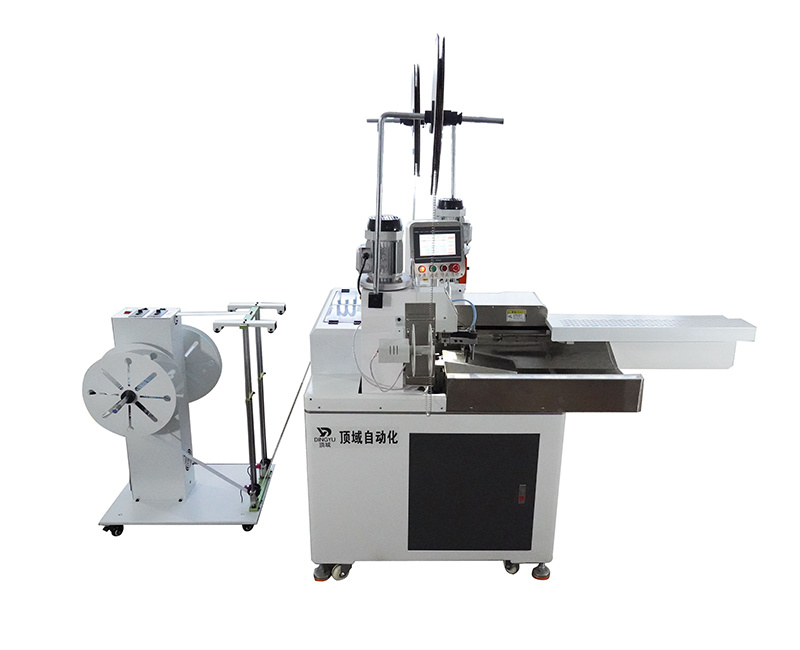

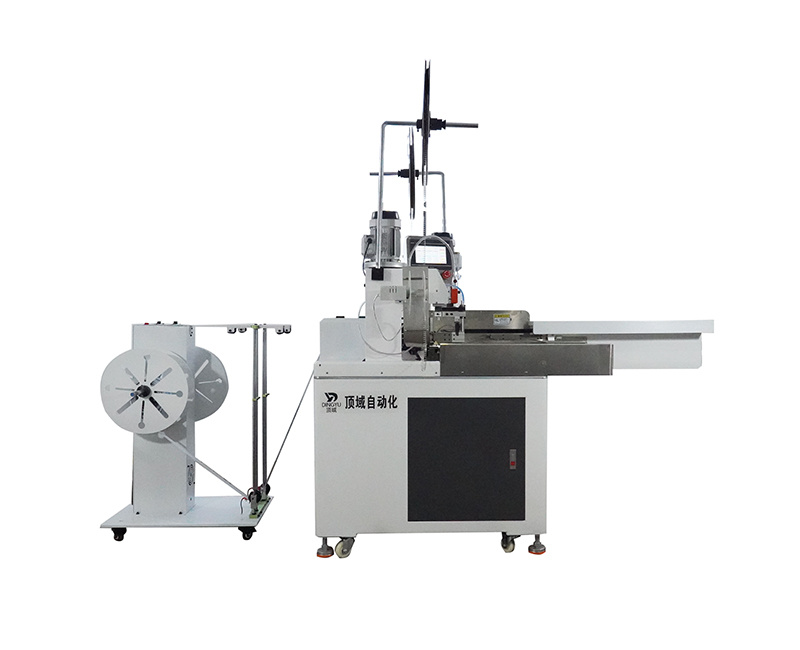

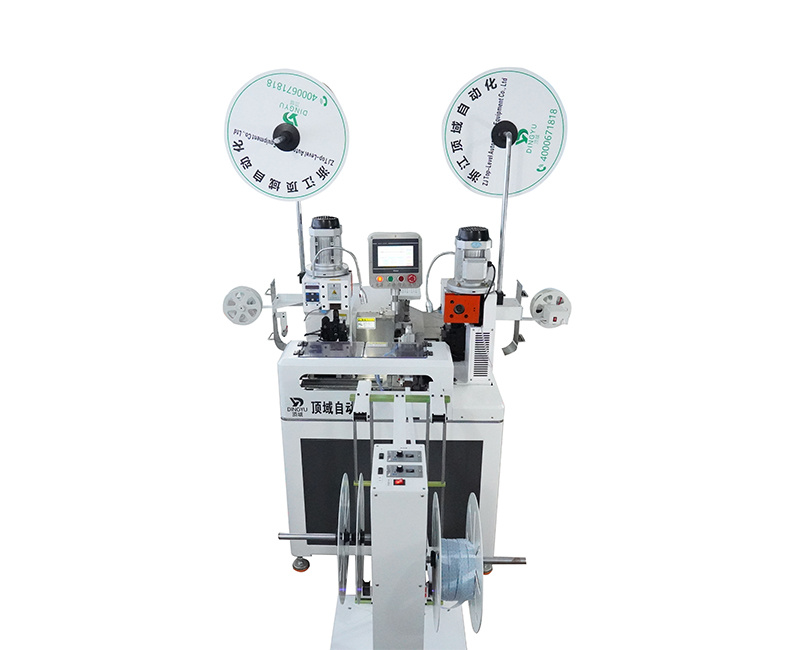

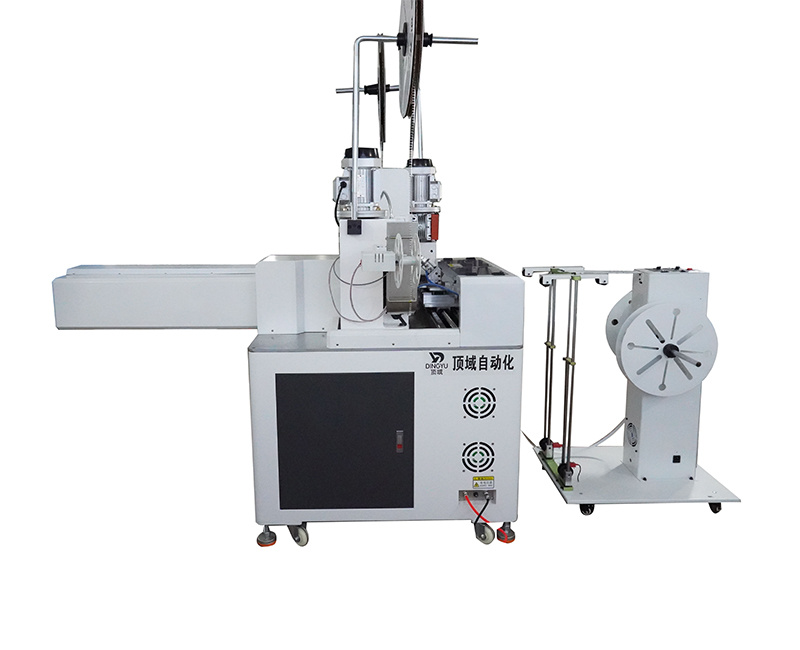

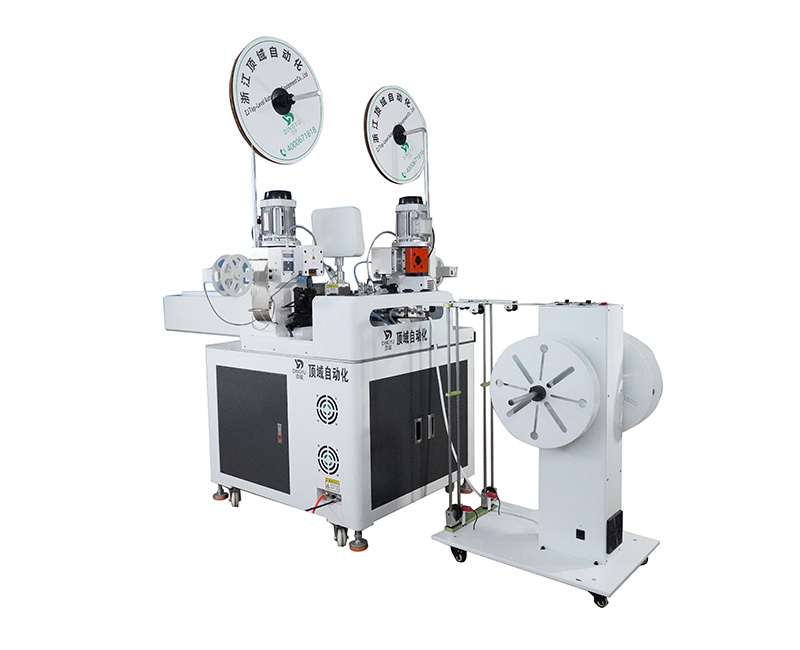

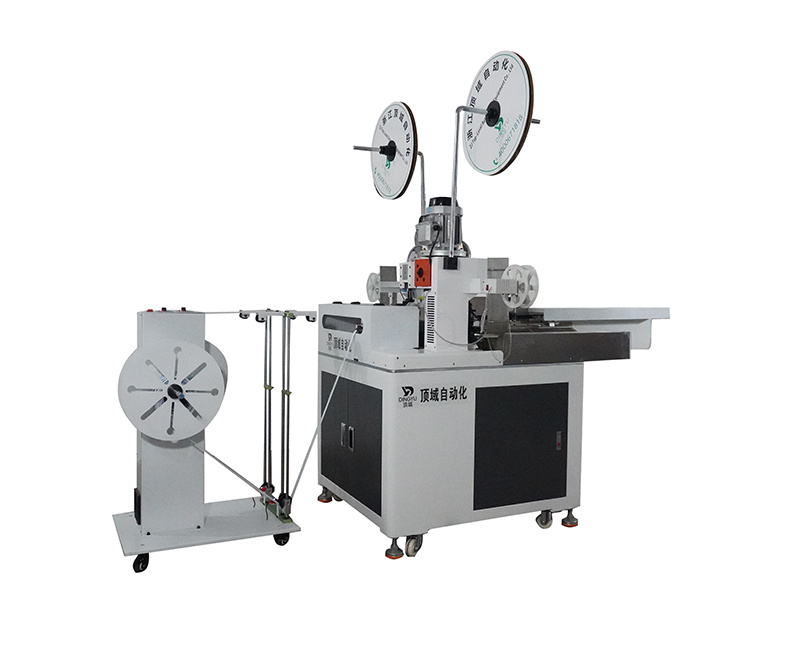

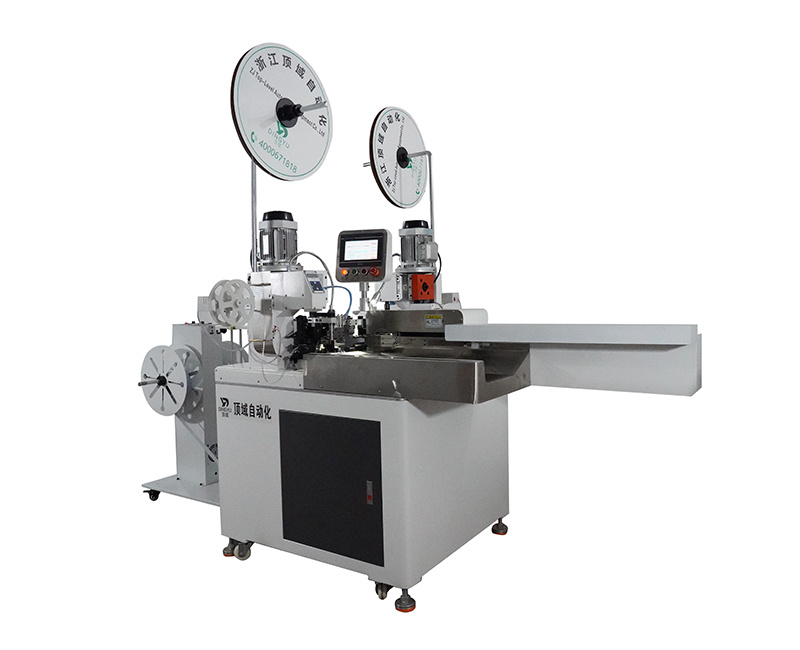

Fully automatic double-head crimping terminal &Wiring machine

Type：

TOP-02DBPX

Keyword： Fully automatic double-head crimping terminal &Wiring machine

Classify：

Fully automatic terminal machine series

Double head/single head terminal crimping machine

Product

E-mail:lydia@wirestripping.com

MOV：0086-15258017693

Whatsapp：8615258017693

Message
Related

Detail

Function Cutting the wire, single-end stripping and splitting the wire, double-end stripping and splitting the wire, two ends crimping the terminal, one end crimping the terminal, one end crimping the terminal and the other end half-stripped; stripping length/crimping the terminal position/splitting length/blade depth can be set and adjusted
Power supply AC110V/200V~250V 50/60Hz
Weight 450KG
Operation interface 7 inch Chinese and English switching touch screen display
Air pressure 0.5 -0.6MPA
Press capacity 2.0T
Size L1880mm×W1000mm×H1550mm

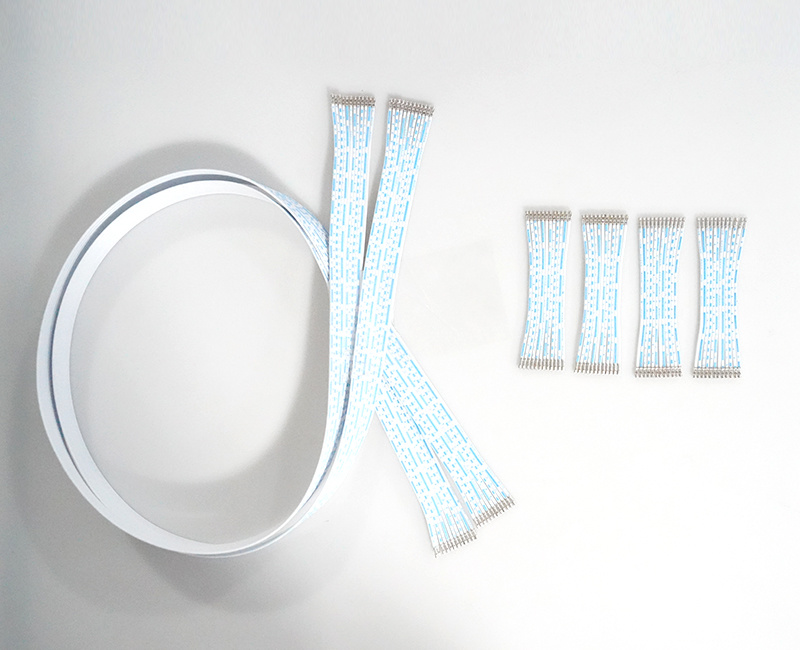

Applicable wire range AWG #28~#18 Red and white cables, gray cables, color cables
Capacity 900pcs/hour(When the 10P cable length is 100mm)
Wire length 60mm~1000mm
Stripping length 27mm-35mm
Stripping length Front end 0.1~10mm, rear end 0.1~10mm
Cut-off precision If the wire length is less than 100mm, the error is 0.2+(Lx0.002)
If the wire length is more than 100mm, the error is 0.5+(Lx0.002)
Detecting devices Air pressure detection, wire missing detection,
terminal punching detection

Main configuration:

Sensor Omron fiber optic detection
Control system stepper motor Leisai or Yankong servo (6 sets)
Touch screen Bike
Cylinder Taiwan AIRTAC
Solenoid valve Taiwan AIRTAC
Belt Ouyite
Screw Taiwan TBI screw
Slide rail Taiwan Shangyin slide rail
Mold Taiwan Fengcheng Mold
