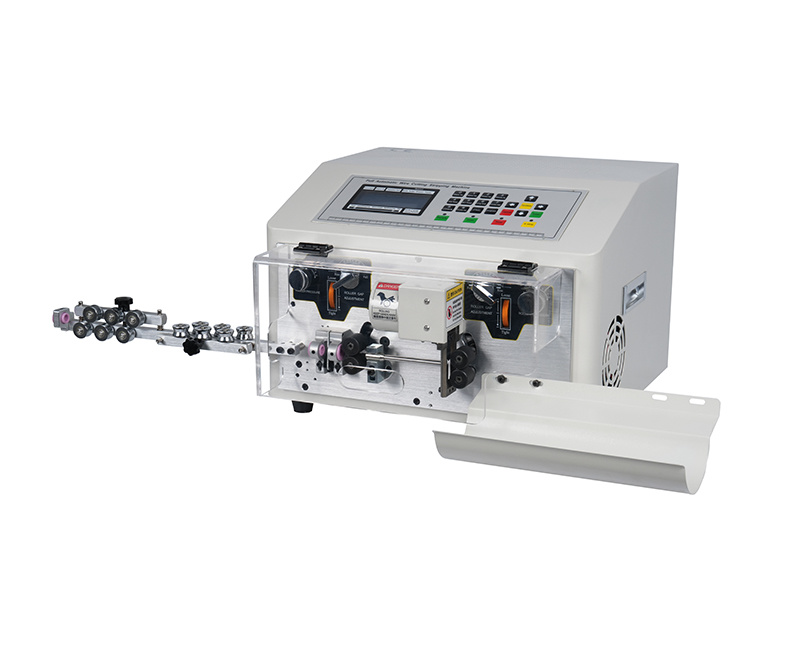

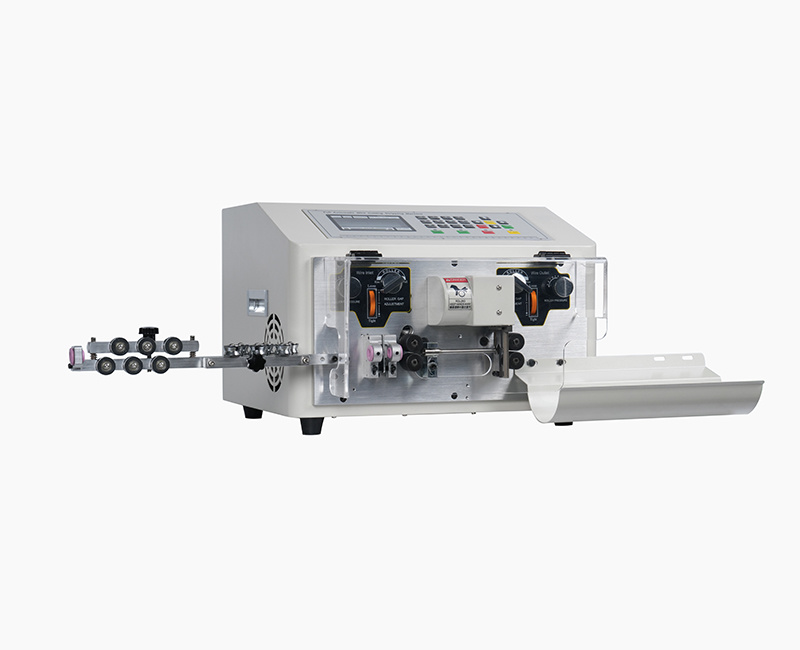

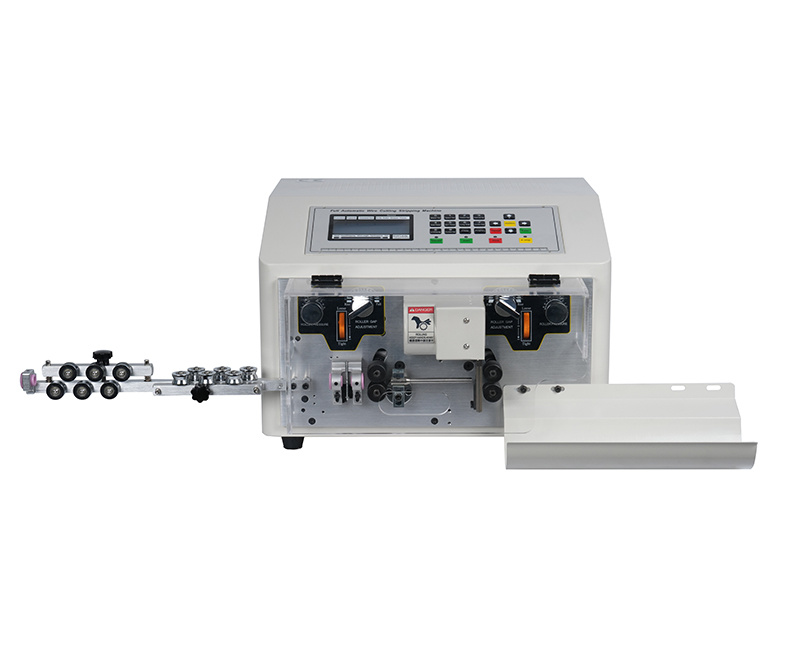

Four-wheel drive wire stripper

Type：

TOP68-SD/N

Keyword： Four-wheel drive wire stripper

Classify：

Product

Wire stripping machine series

Wire stripping machine(Key Panel)

E-mail:lydia@wirestripping.com

MOV：0086-15258017693

Whatsapp：8615258017693

Message
Related

Detail

Video introduction:

 Parameter introduction:

Weight 28KG
Power 300W
Electrical connection 110V/220V 50HZ/60HZ
Operation interface English/Chinese (LCD display)
Machine dimension 460*470*325mm
Wire length range 1～10000mm
Strip length Front end0-30;rear end0-15mm
Length accuracy ± (0.002xL)mm
Intermediate peeling times 13 times
Wire cross section 0.1～4mm²
Max conduit inside diameter ￠6mm
Wire material PVC,Teflon,Braided,Fiberglass wire
Blade material hard tungsten steel
Transport speed (L=100MM piece/hour） 4000-5000 pieces
Driving mode four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
Stripping speed The cutting speed and wire feeding speed can be adjusted respective

EVERY DETAIL

is crafted
with ingenuity and intelligenc

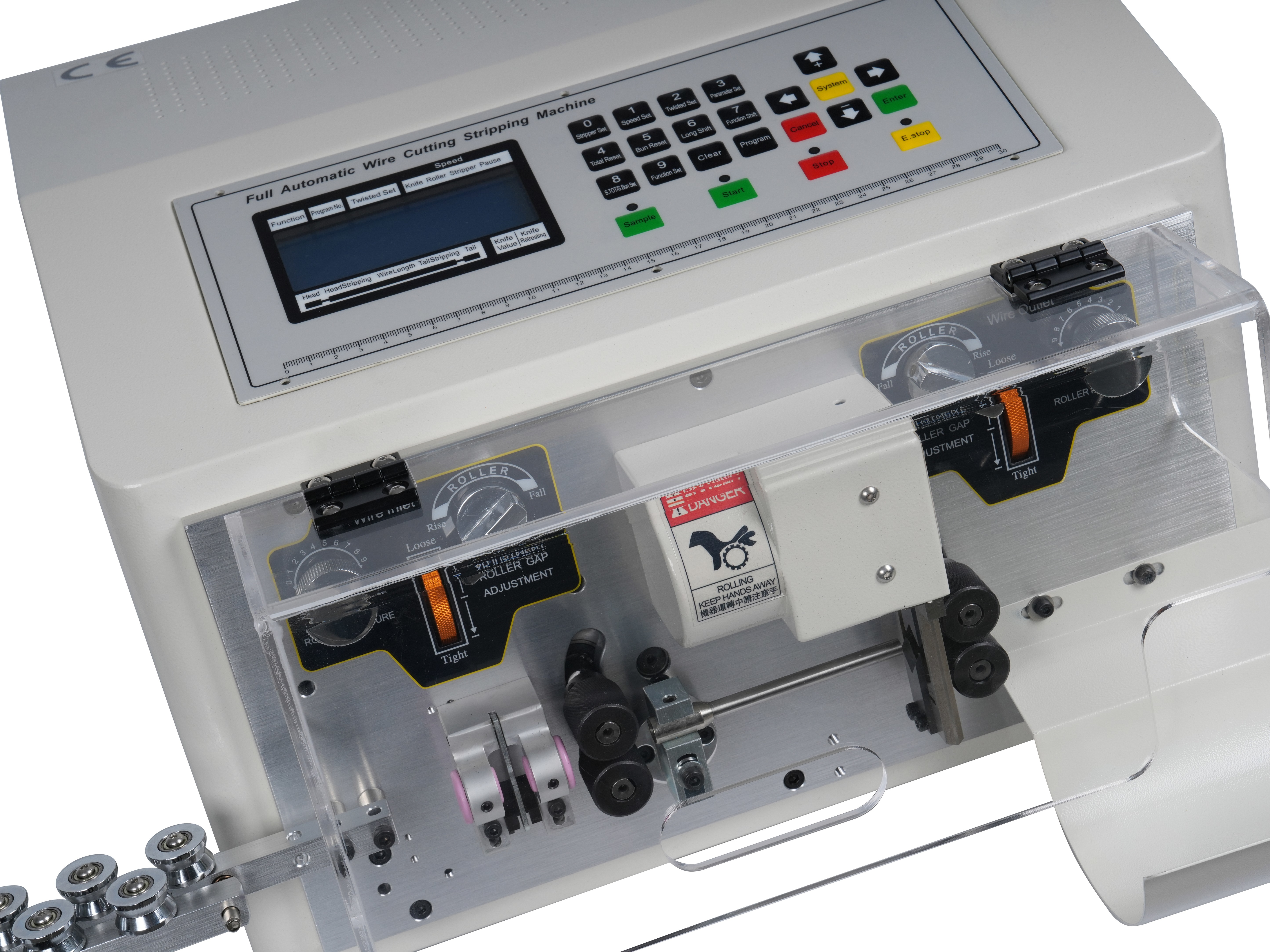

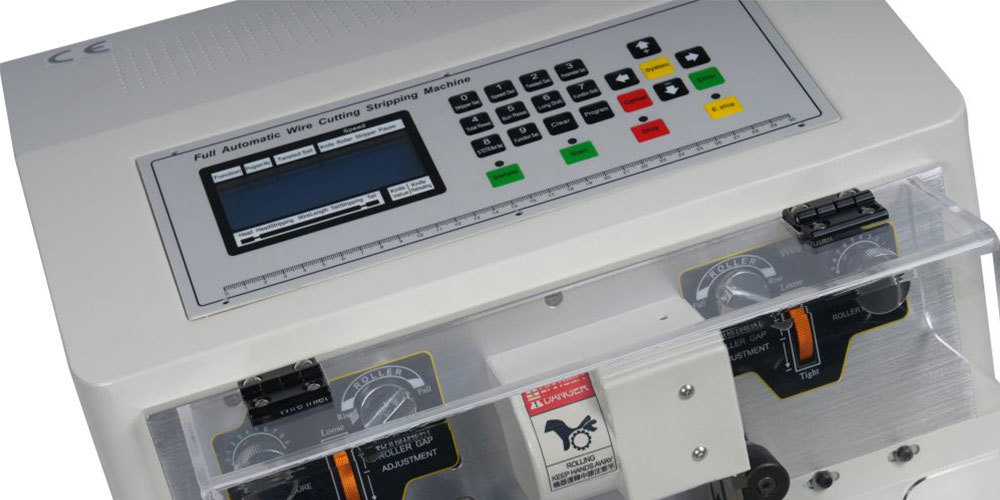

01 Control
Panel		 Fully intelligent operating system,
easy to debug,easy to operate, and easy to set up.

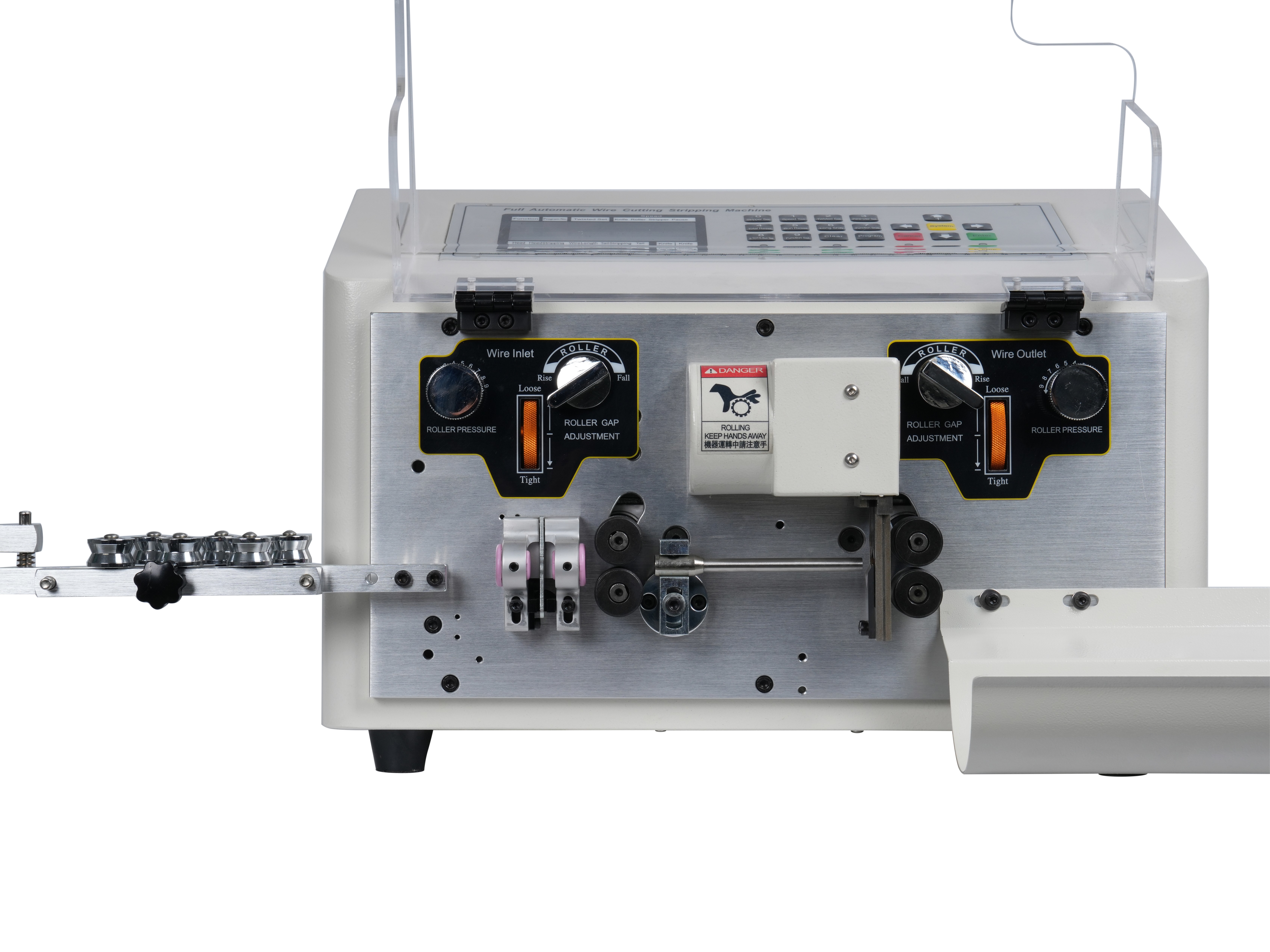

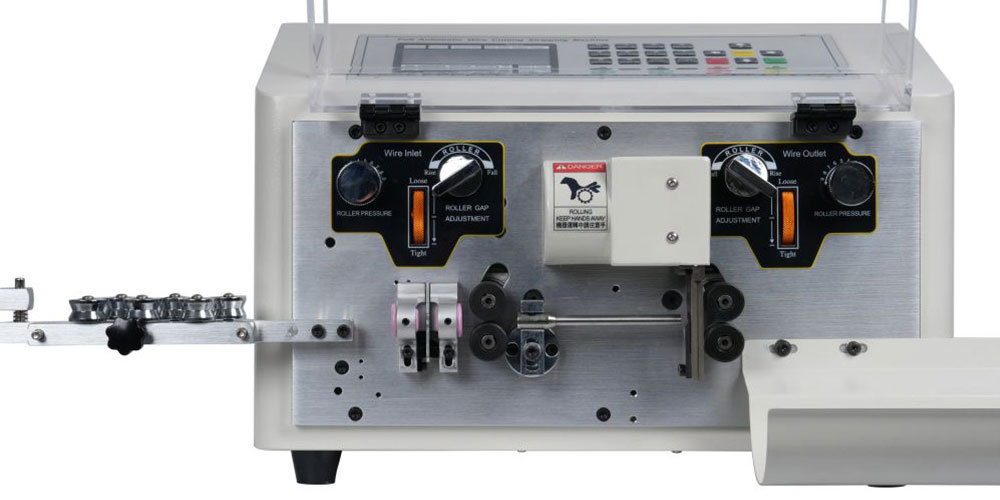

02 Quick
Adjustment		 Easy to operate, can directly manually adjust the force
of the wire pressing wheel without the need for other tools.

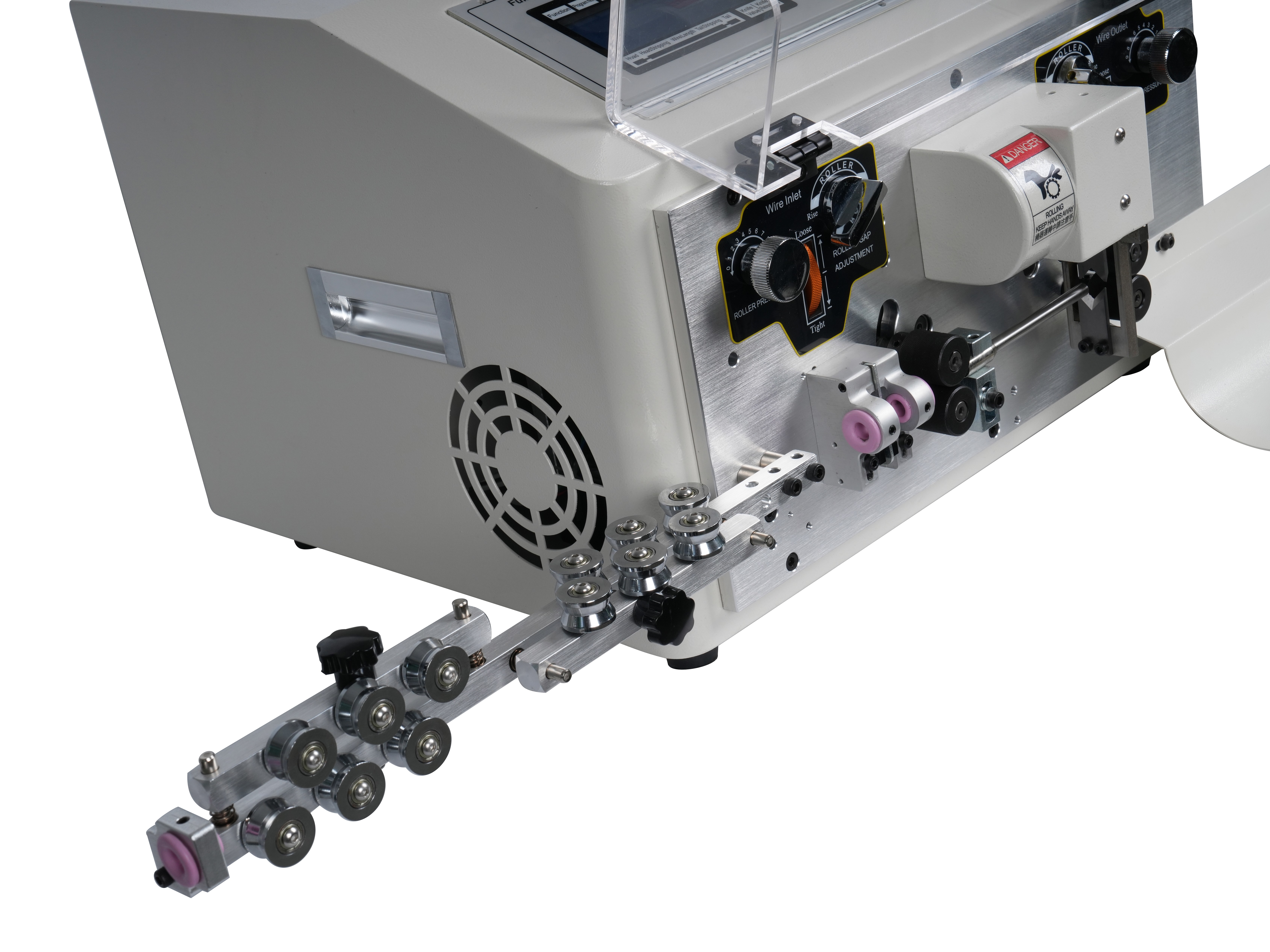

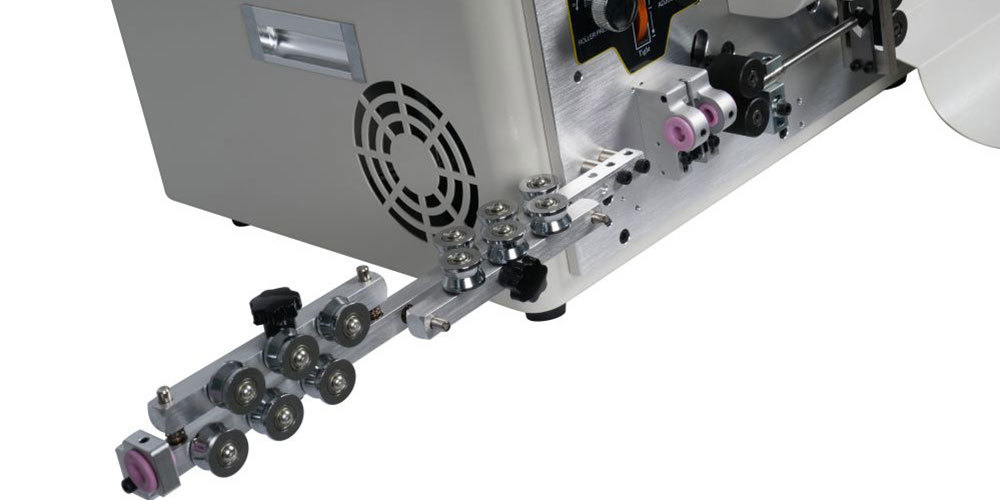

03 Wire
Straightener		 When processing the wire,there are no surface indentations,
which further improves the quality of the processed wire.

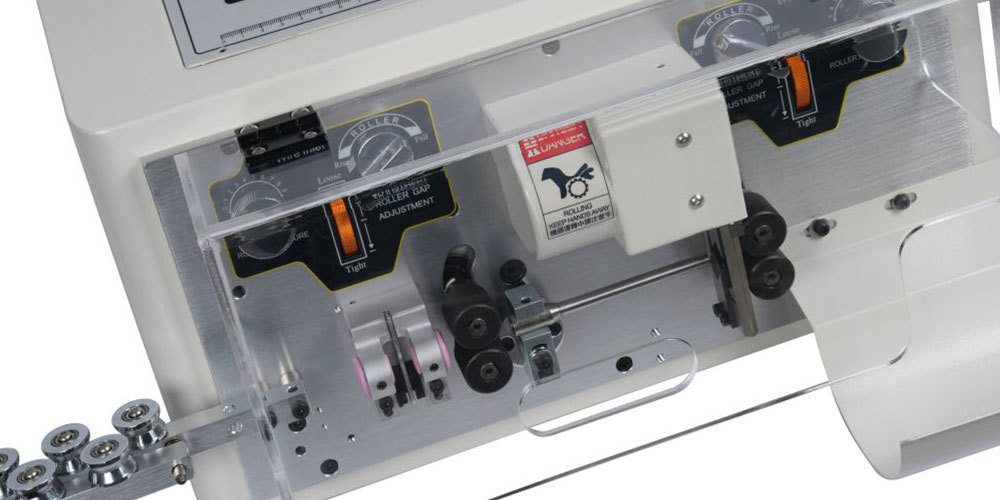

04 Selection of
Steel blades		 Cutting wider, larger, and thicker, widely used,
with one blade that can be used multiple times
