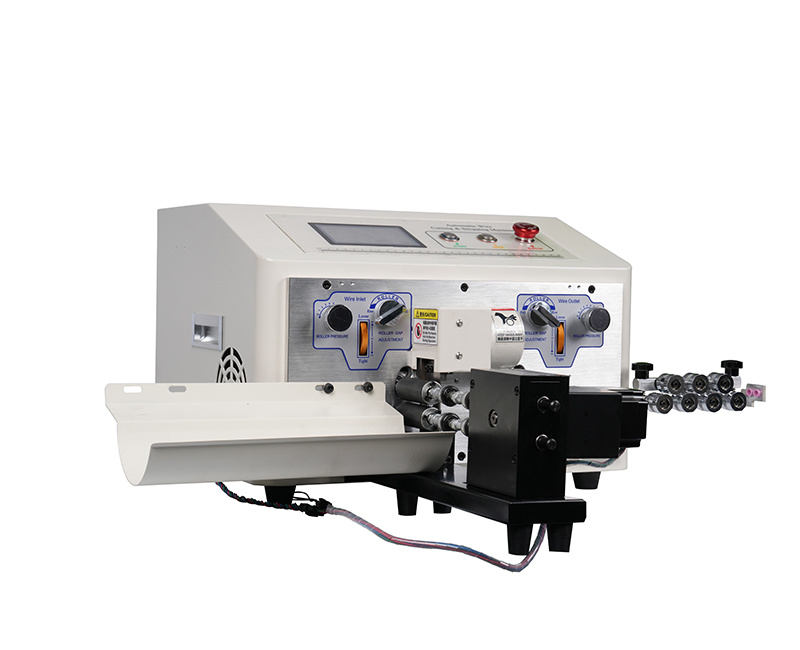

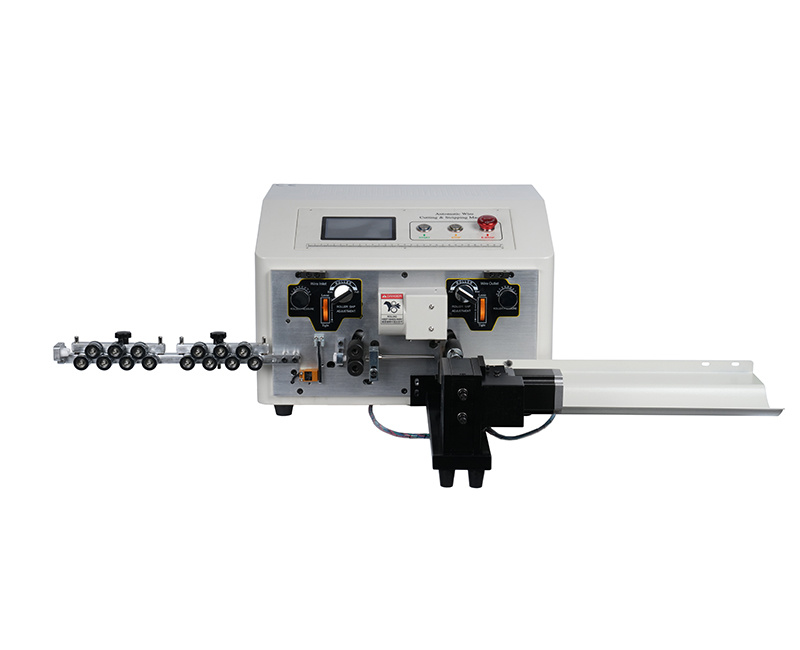

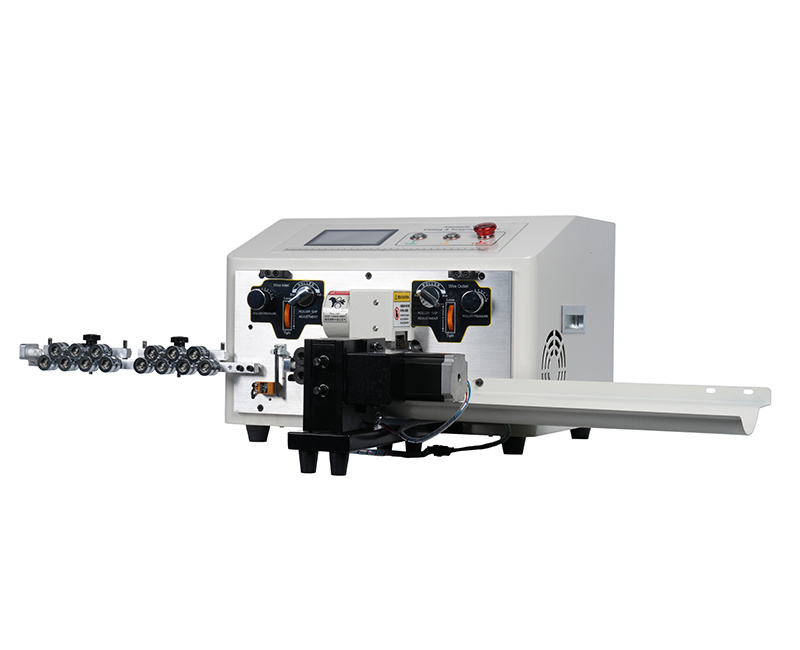

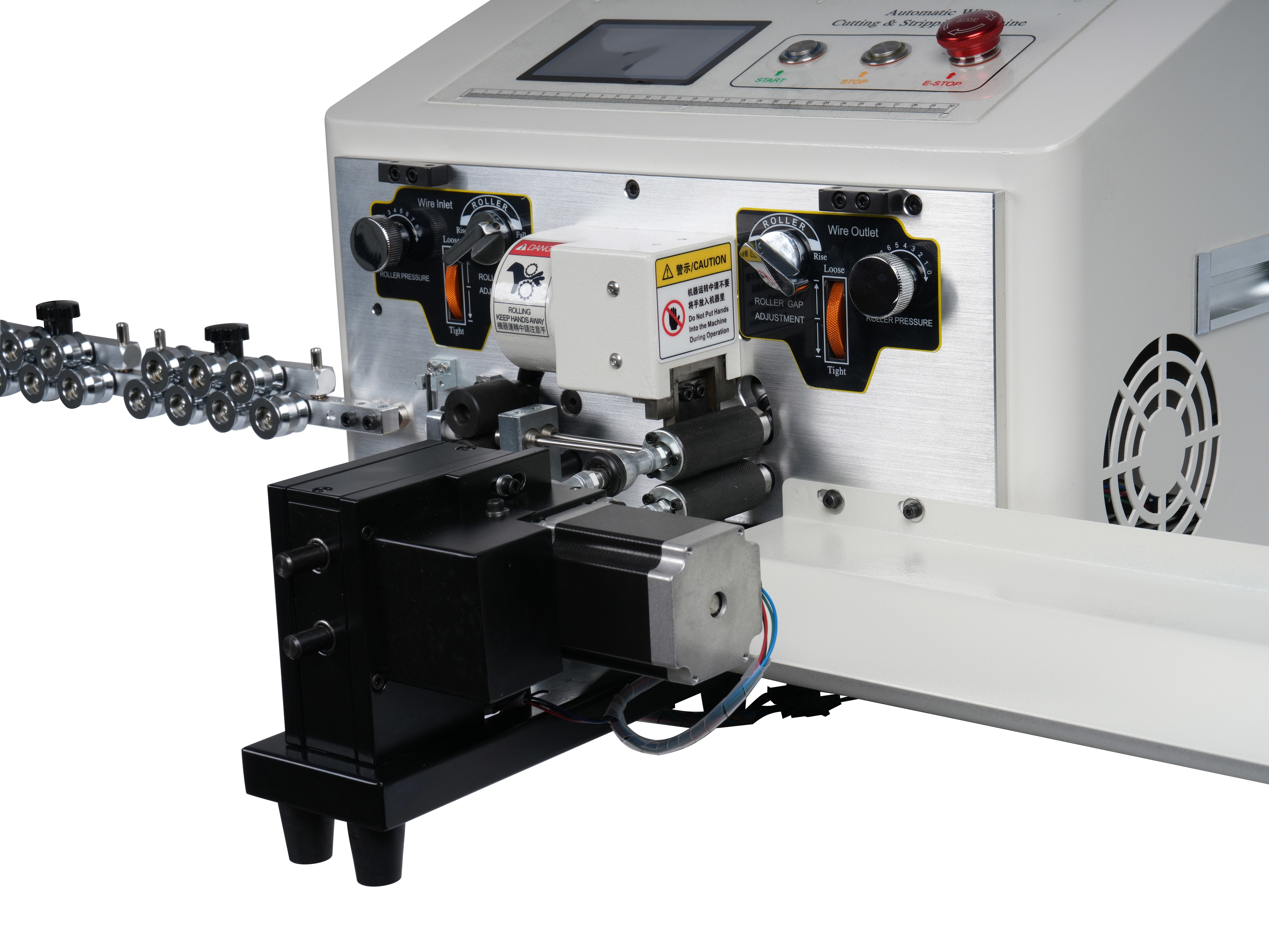

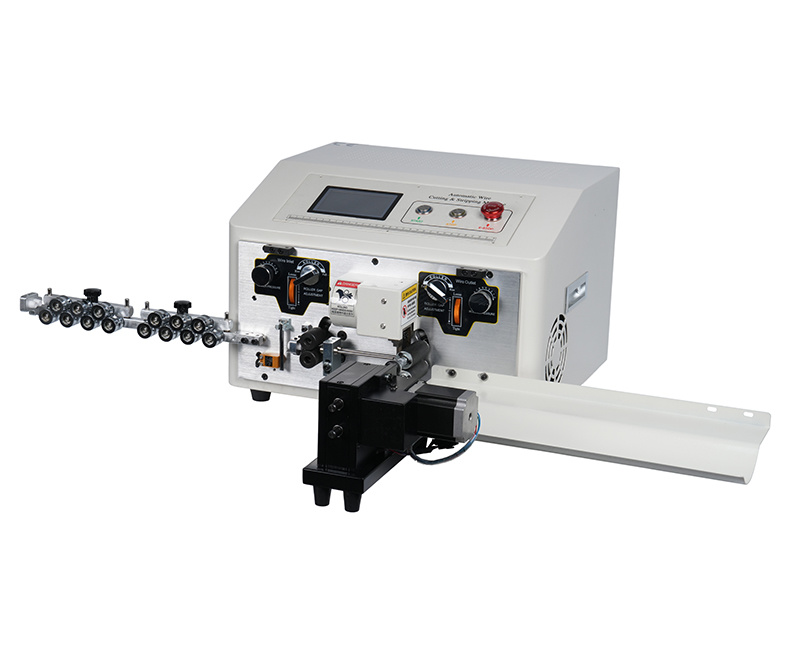

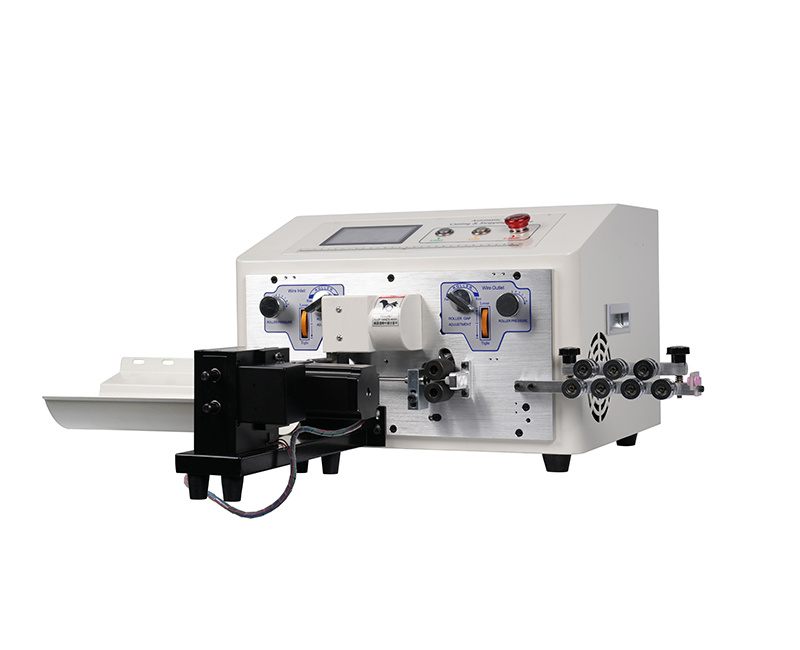

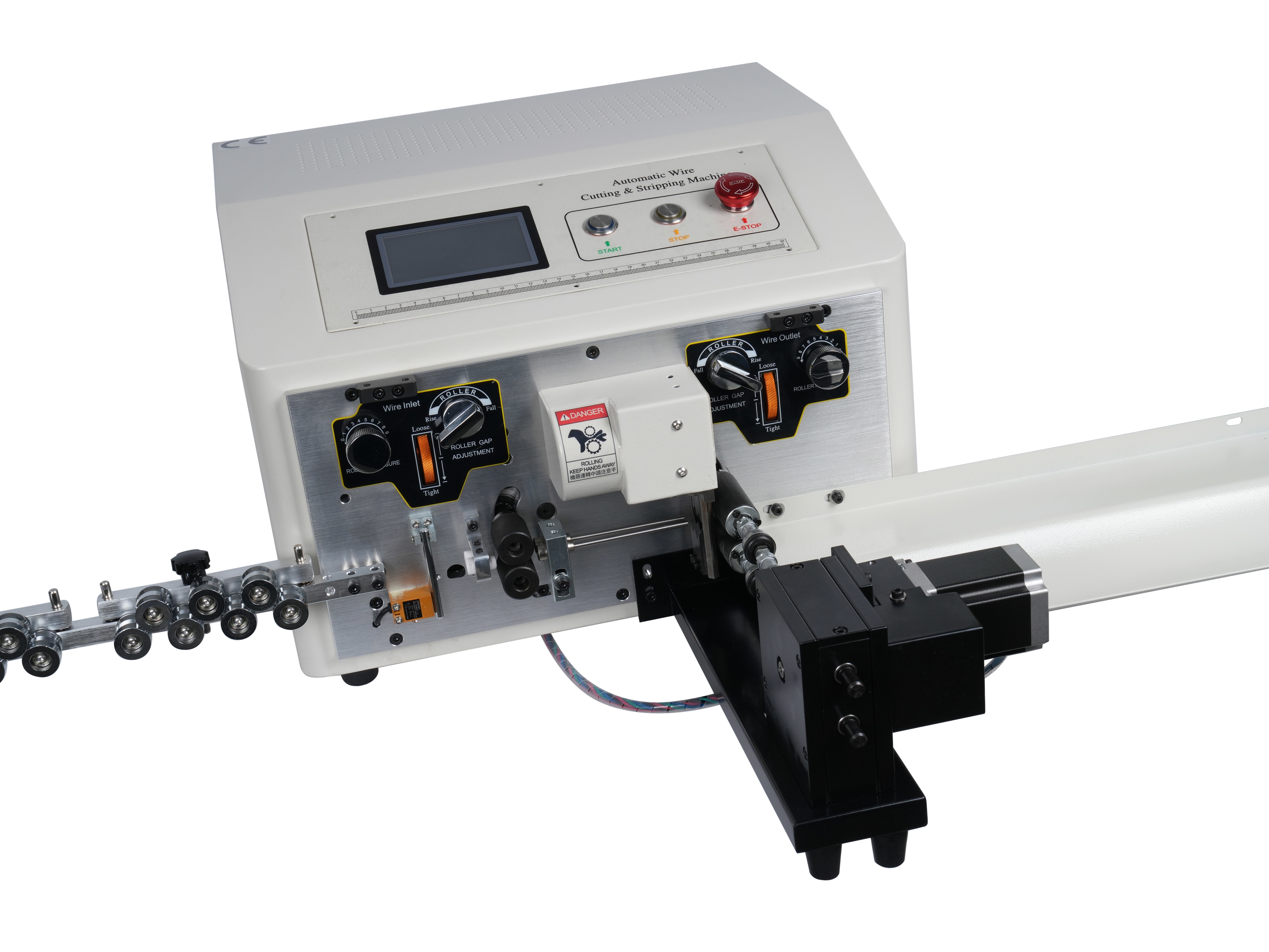

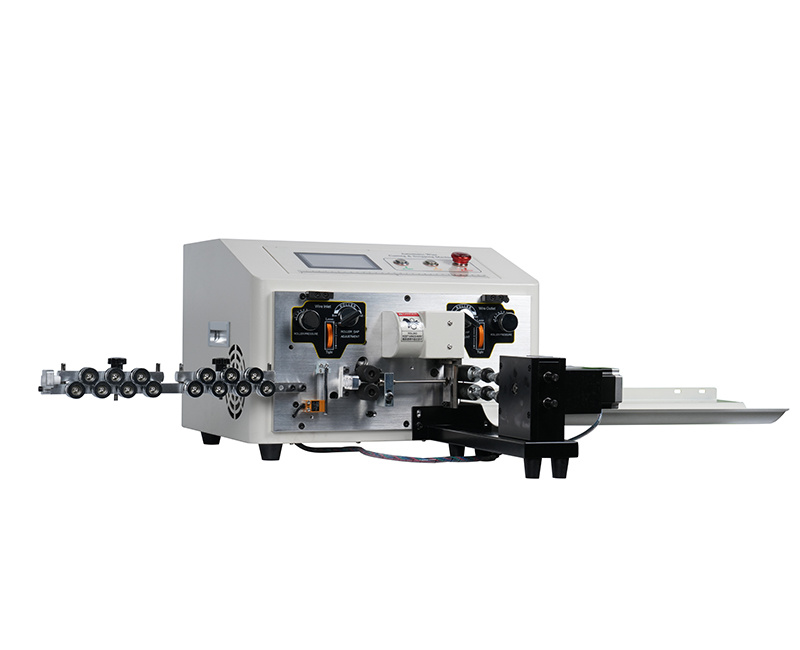

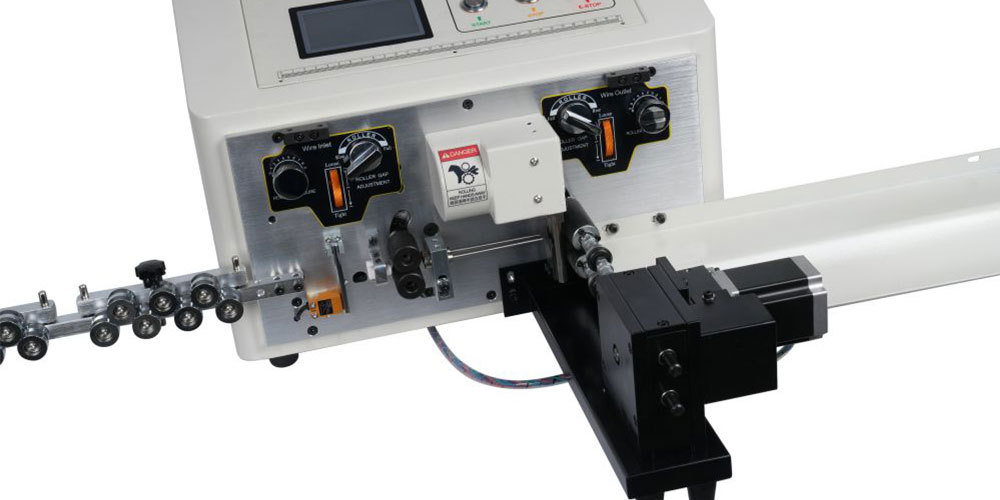

Double wire twisting machine with touch screen

Type：

TOP68-NX2/S

Keyword： Double wire twisting machine with touch screen

Classify：

Product

Wire stripping machine series

Wire stripping machine(Touch screen）

Twisting machine

E-mail:lydia@wirestripping.com

MOV：0086-15258017693

Whatsapp：8615258017693

Message
Related

Detail

 Video introduction:

Parameter introduction:

Weight 38KG
Electrical connection 110V/220V 50HZ/60HZ
Power 350W
Operation interface 4.3 inch Chinese and English switching touch screen display
Machine dimension 460*470*325mm
Wire length range 1～9999mm
Strip length Front end0-30;rear end0-20mm
Length accuracy ± (0.002xL)mm
Wire cross section Double wire 0.1～2.5mm²; Single wire 0.1～4mm²
Max conduit inside diameter ￠6mm
Twisting method Double ended or single ended
Wire material PVC,Teflon,Braided,Fiberglass wire
Blade material hard tungsten steel
Transport speed (L=100MM piece/hour） 3000-6000 pieces
Driving mode four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

EVERY DETAIL

is crafted
with ingenuity and intelligenc

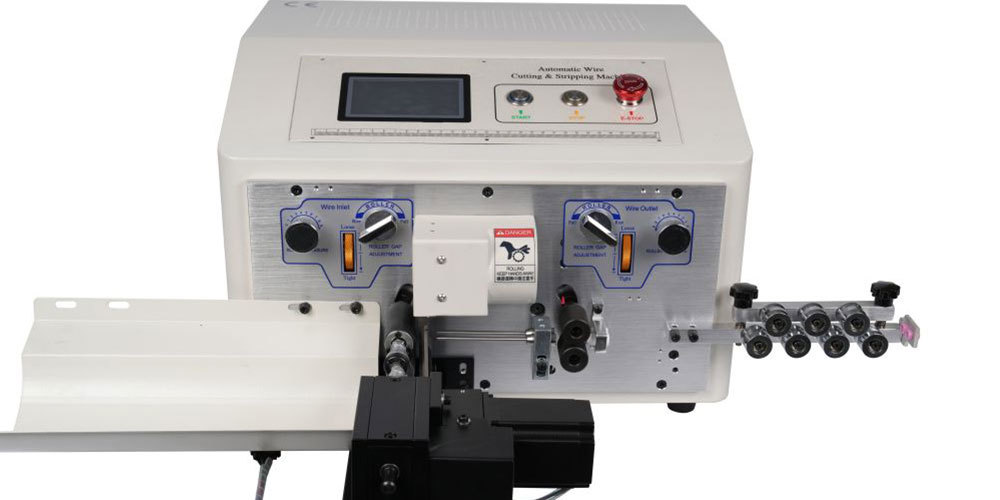

01 Control
Panel		 Fully intelligent operating system,
easy to debug,easy to operate, and easy to set up.

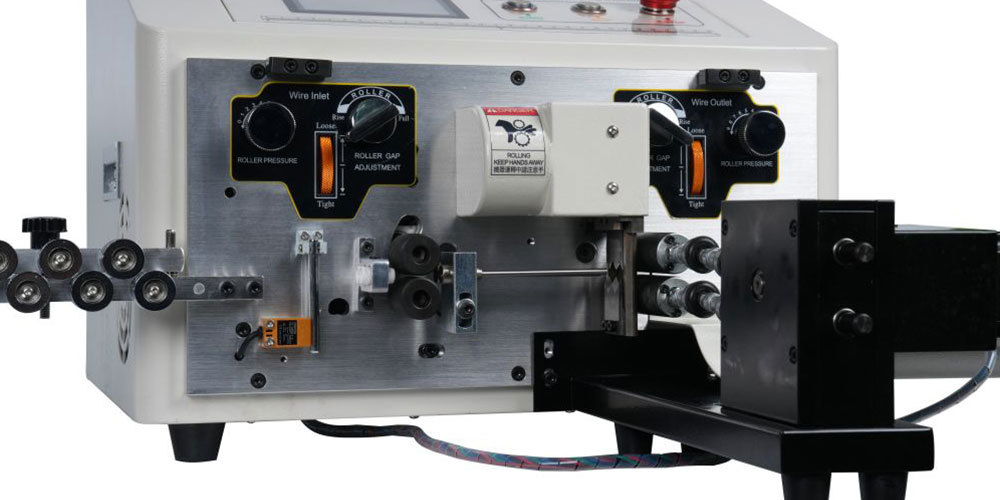

02 Quick
Adjustment		 Easy to operate, can directly manually adjust the force
of the wire pressing wheel without the need for other tools.

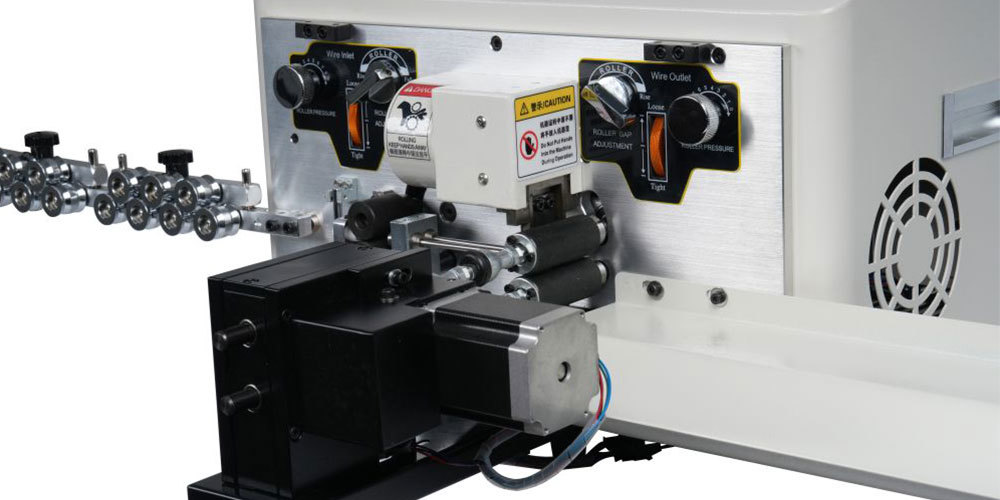

03 Wire
Straightener		 When processing the wire,there are no surface indentations,
which further improves the quality of the processed wire.

04 Selection of
Steel blades		 Cutting wider, larger, and thicker, widely used,
with one blade that can be used multiple times



Exhibition

Related products

6mm² touch screen stripper with jump tube

6mm² touch screen stripper with jump tube

Round sheath wire stripper with touch screen

Round sheath wire stripper with touch screen

Double wire twisting machine with touch screen

Double wire twisting machine with touch screen

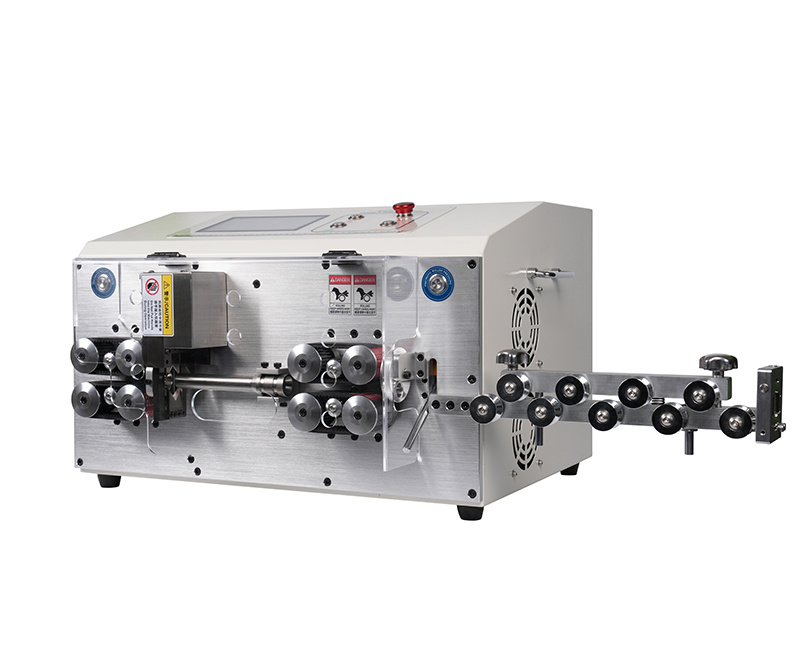

70mm²motor lifting conduit, motor screw lifting wheel ,Knife holder with stepper motor
