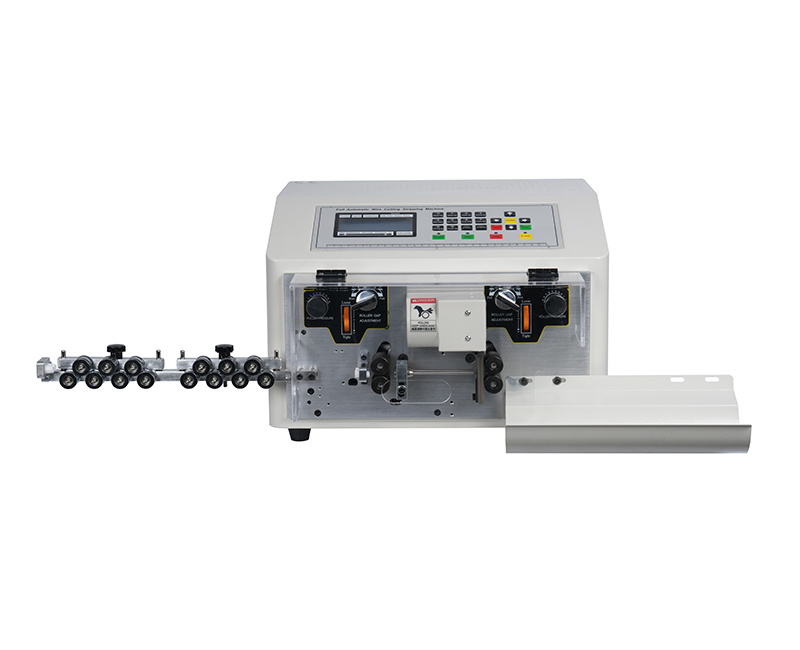

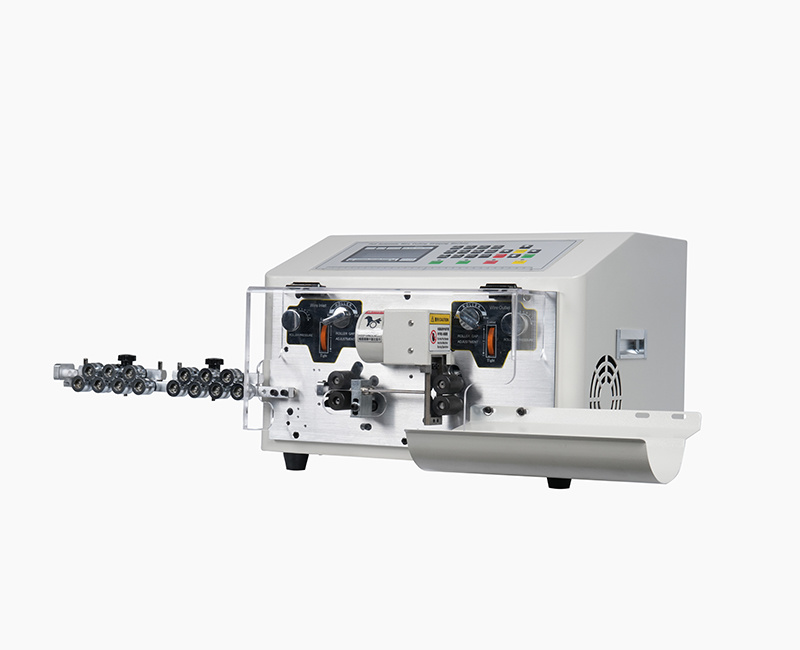

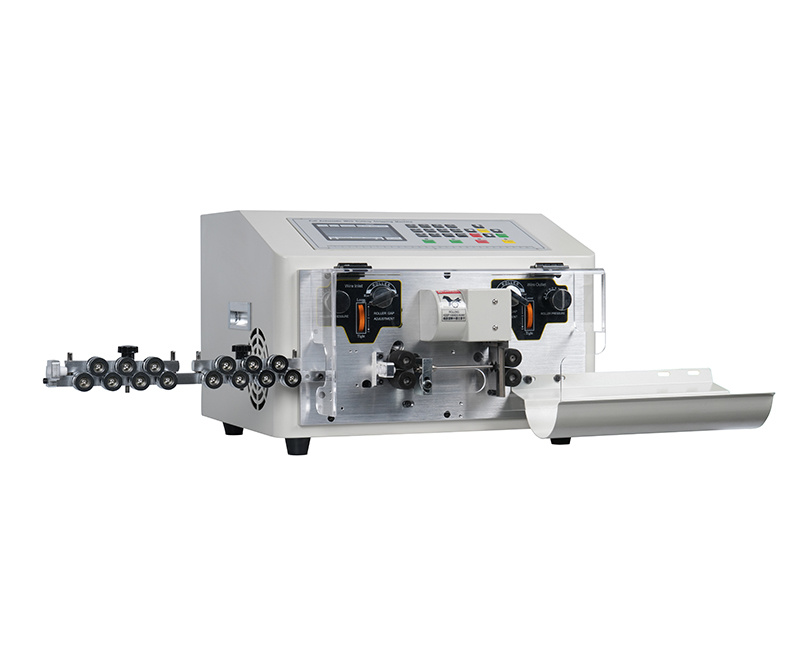

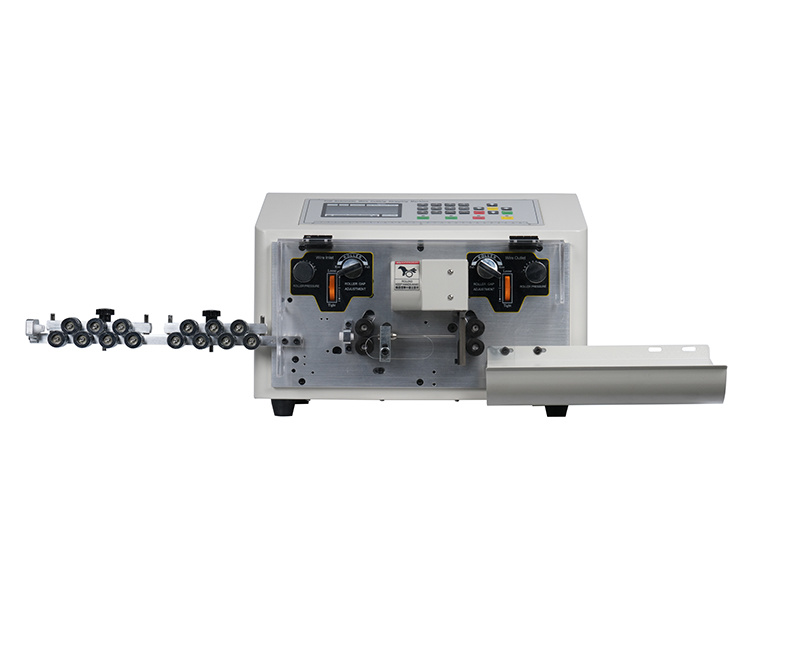

Double wire stripper with jump tube
Type：
TOP68-SDB2/N
Keyword： Double wire stripper with jump tube
Detail
Video introduction:
Parameter introduction:
| Weight | 28KG |
| Power | 300W |
| Electrical connection | 110V/220V 50HZ/60HZ |
| Operation interface | English/Chinese (LCD display) |
| Machine dimension | 460*470*325mm |
| Wire length range | 1～10000mm |
| Strip length | Front end0-30;rear end0-30mm |
| Length accuracy | ± (0.002xL)mm |
| Intermediate peeling times | 13 times |
| Wire cross section | Double wire 0.1～2.5mm²; Single wire 0.1～4mm² |
| Max conduit inside diameter | ￠6mm |
| Wire material | PVC,Teflon,Braided,Fiberglass wire |
| Blade material | hard tungsten steel |
| Transport speed | (L=100MM piece/hour） 5000-10000 pieces |
| Driving mode | four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step) |
| Stripping speed | The cutting speed and wire feeding speed can be adjusted respectively.(0 is the slowest, 9 is the fastest) |
EVERY DETAIL
is crafted
with ingenuity and intelligenc

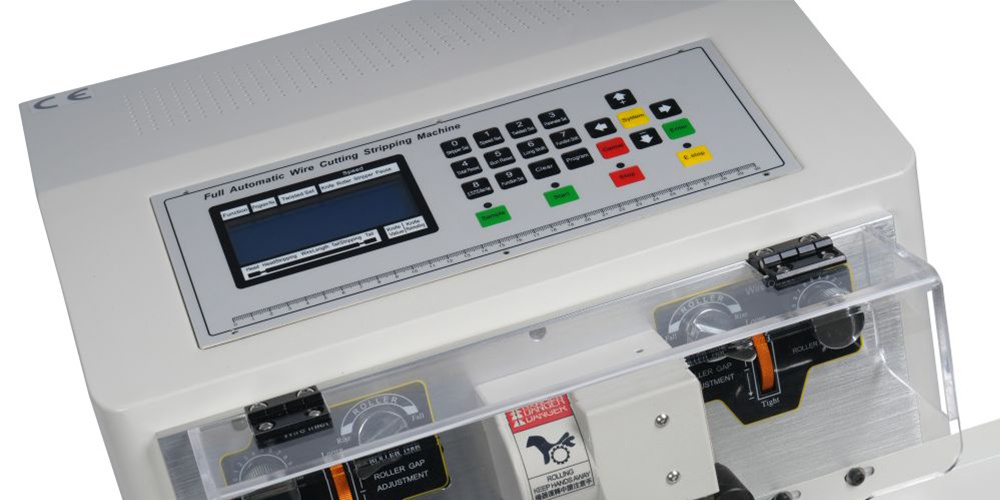

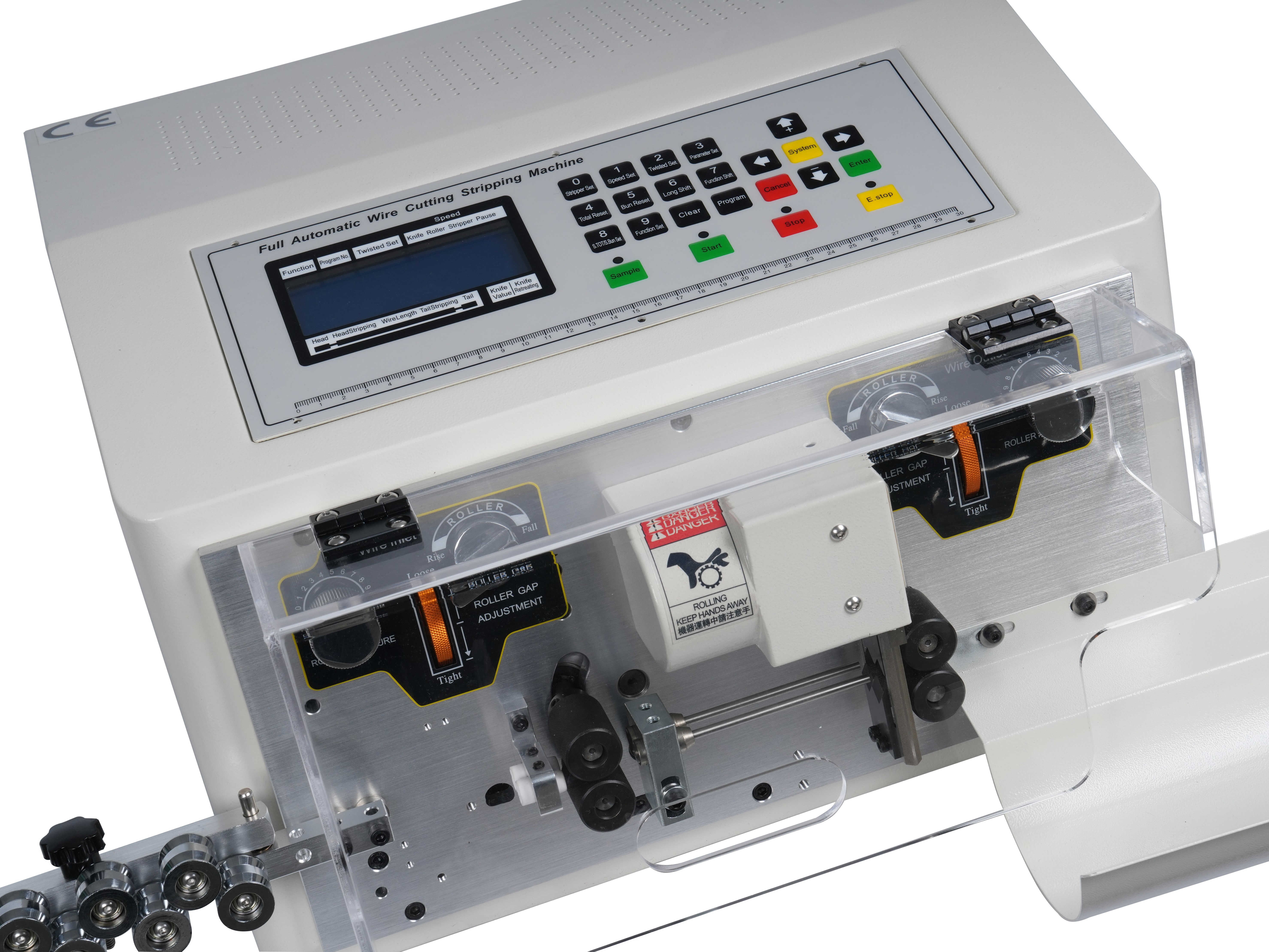

| 01 | Control Panel |
Fully intelligent operating system, easy to debug,easy to operate, and easy to set up. |

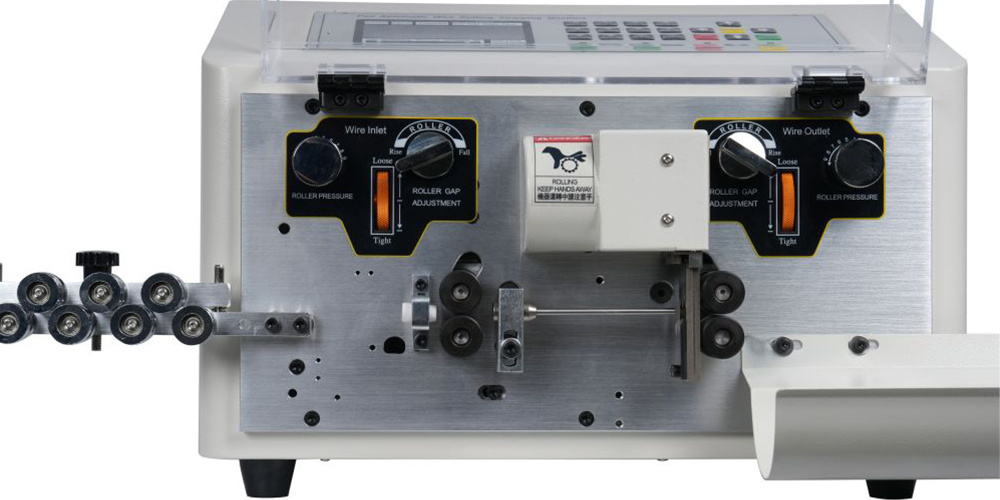

| 02 | Quick Adjustment |
Easy to operate, can directly manually adjust the force of the wire pressing wheel without the need for other tools. |

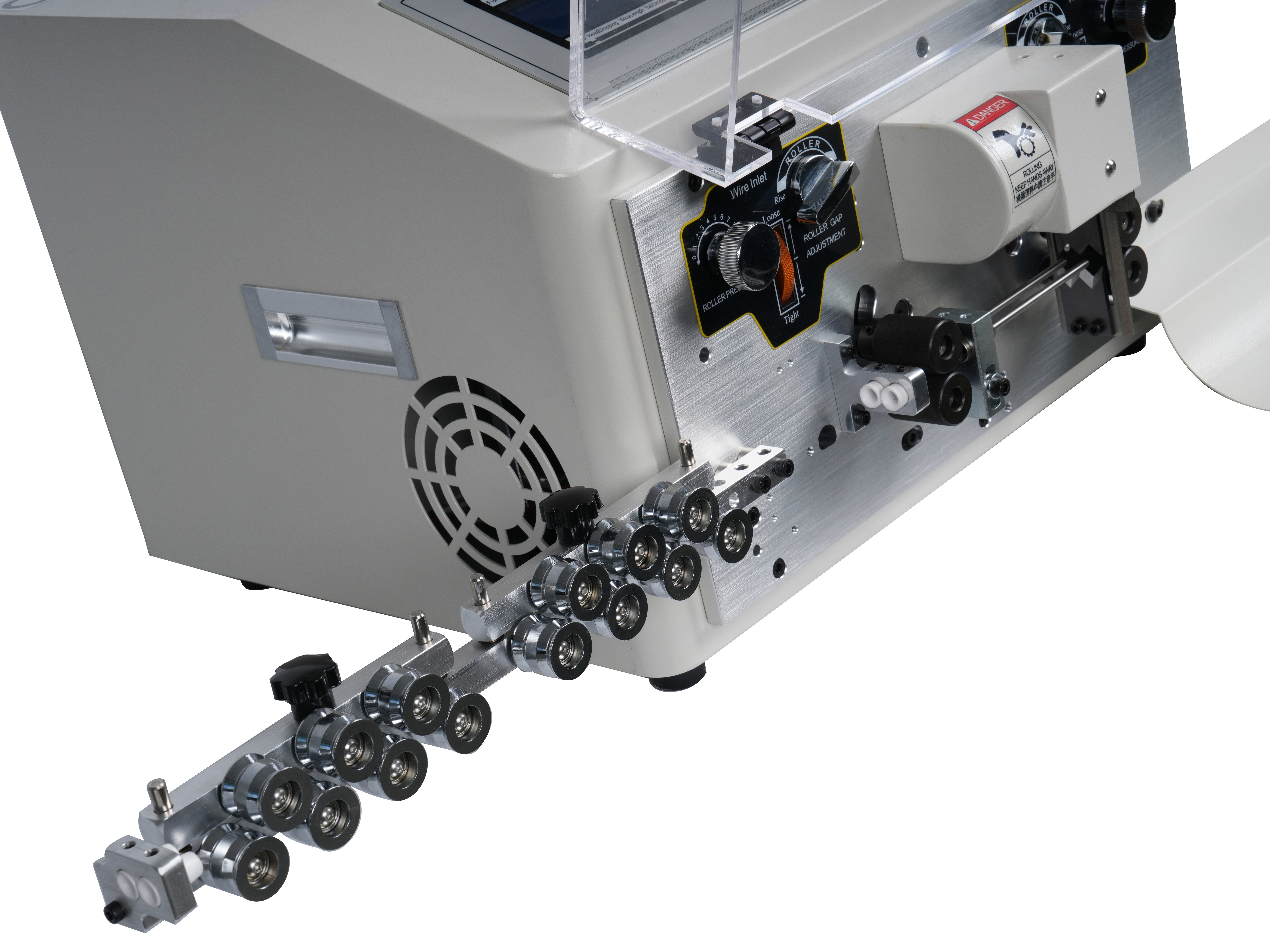

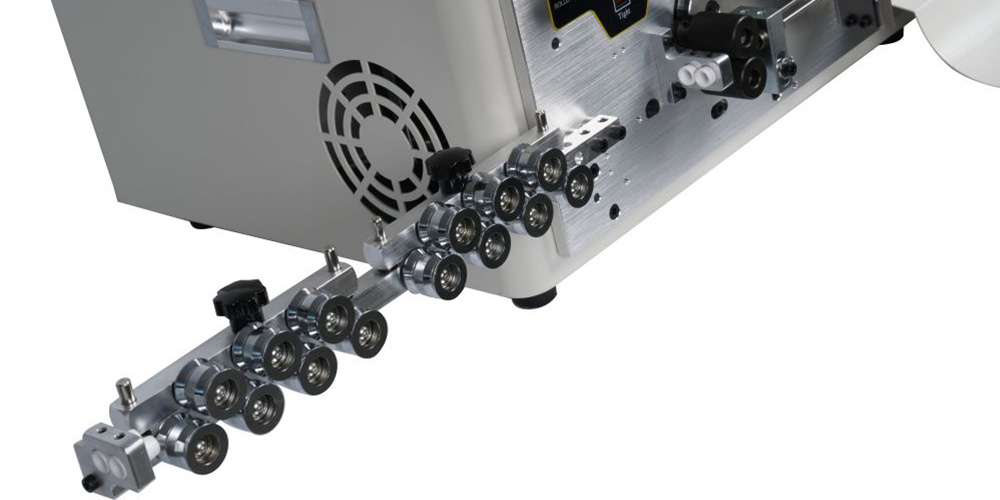

| 03 | Wire Straightener |
When processing the wire,there are no surface indentations, which further improves the quality of the processed wire. |
| 04 | Selection of Steel blades |
Cutting wider, larger, and thicker, widely used, with one blade that can be used multiple times |
