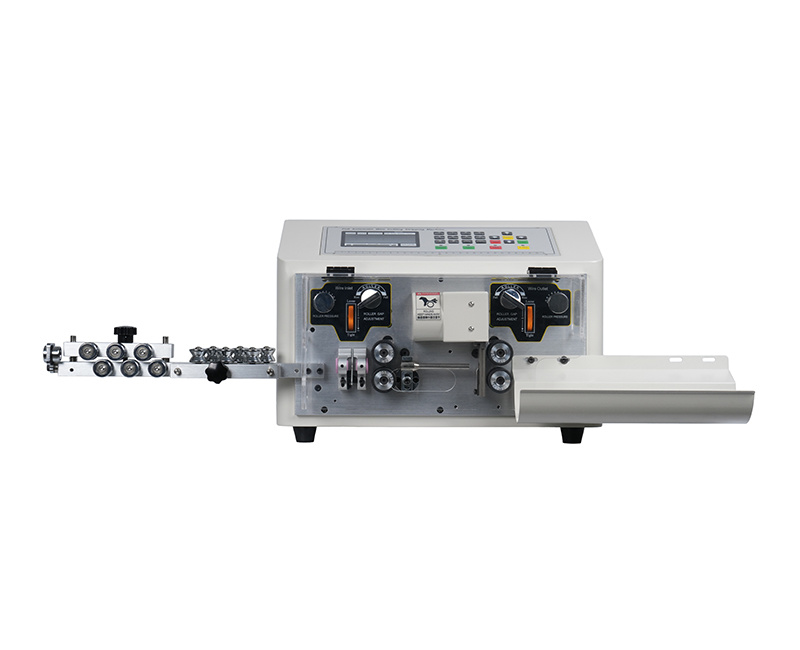

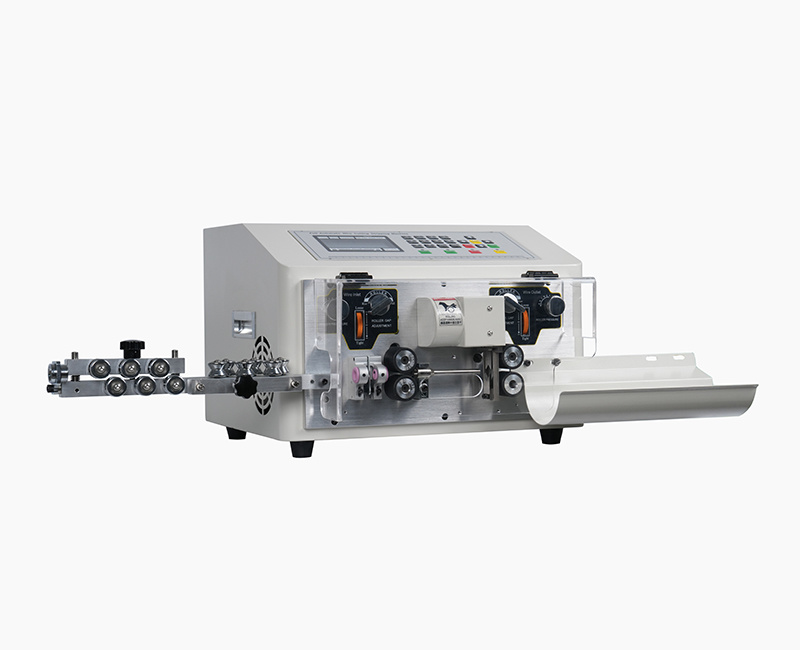

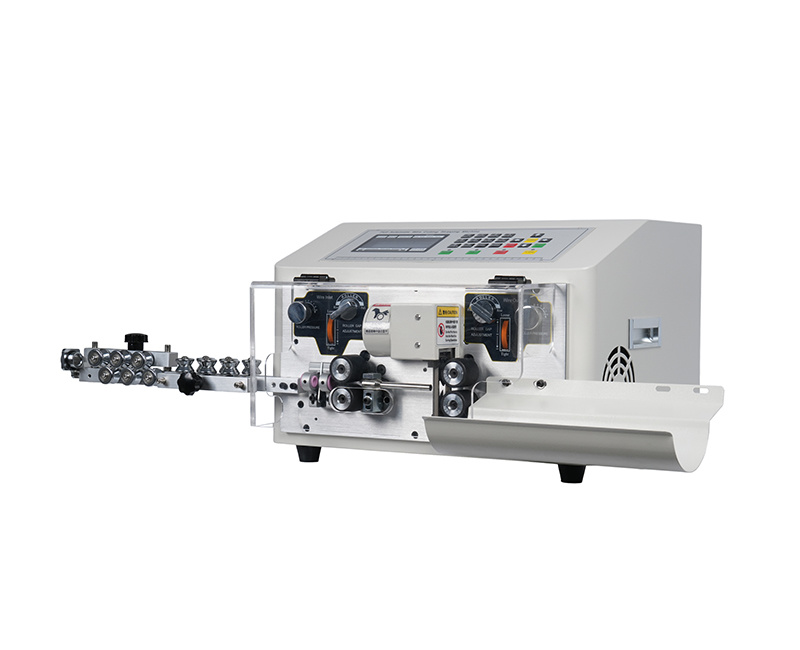

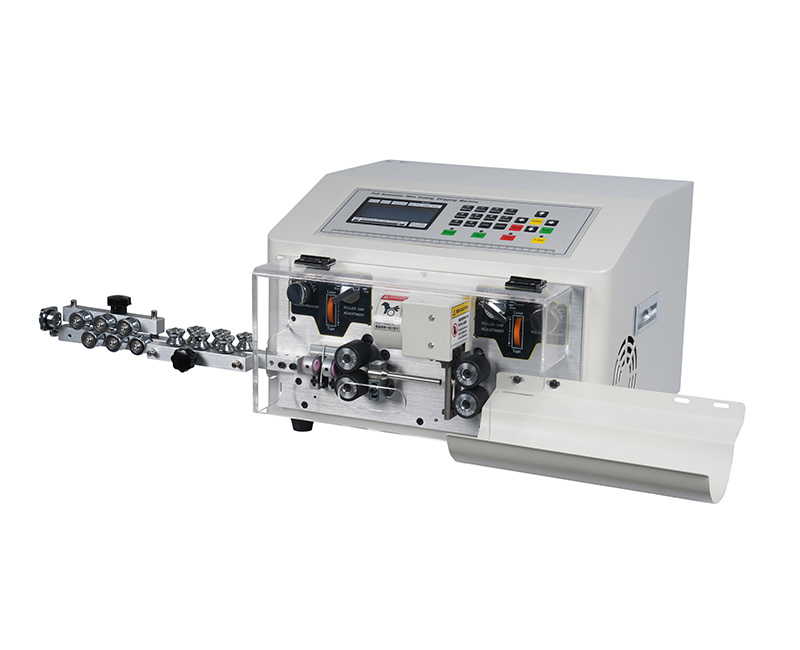

6 square thick wire stripper

Type:

TOP68-E/N

A full range of automatic terminal equipment is located in the Top-level. Professional customization of wiring harness equipment - just find the Top-level.

Keyword: 6 square thick wire stripper

E-mail:lydia@wirestripping.com

MOV:0086-15258017693

Whatsapp:8615258017693

Detail

Video introduction:

Parameter introduction:

Weight 28KG
Electrical connection 110V/220V 50HZ/60HZ
Power 300W
Operation interface English/Chinese (LCD display)
Machine dimension 460*470*325mm
Wire length range 1~10000mm
Strip length Front end
0-35;rear end 0-15mm
Length accuracy ± (0.002xL)mm
Intermediate peeling times 13 times
Wire cross section 0.1~6mm²
Max conduit inside diameter ¢8mm
Wire material PVC,Teflon,Braided,Fiberglass wire
Blade material High-speed steel
Transport speed (L=100MM piece/hour) 3000-5000 pieces
Driving mode four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
Stripping speed The cutting speed and wire feeding speed can be adjusted respectively.(0 is the slowest, 9 is the fastest)


EVERY DETAIL

is crafted
with ingenuity and intelligenc

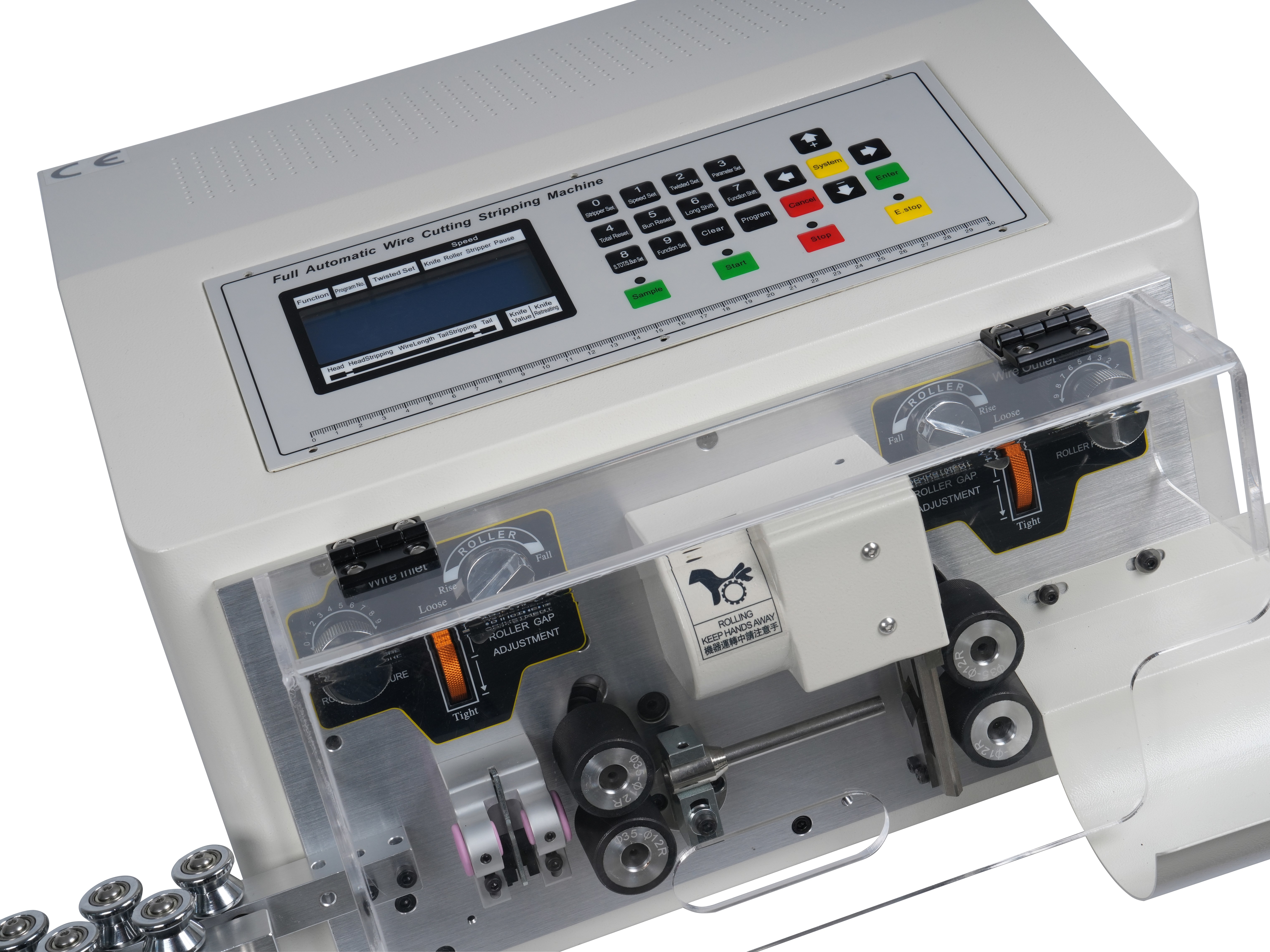

01 Control
Panel
Fully intelligent operating system,
easy to debug,easy to operate, and easy to set up.

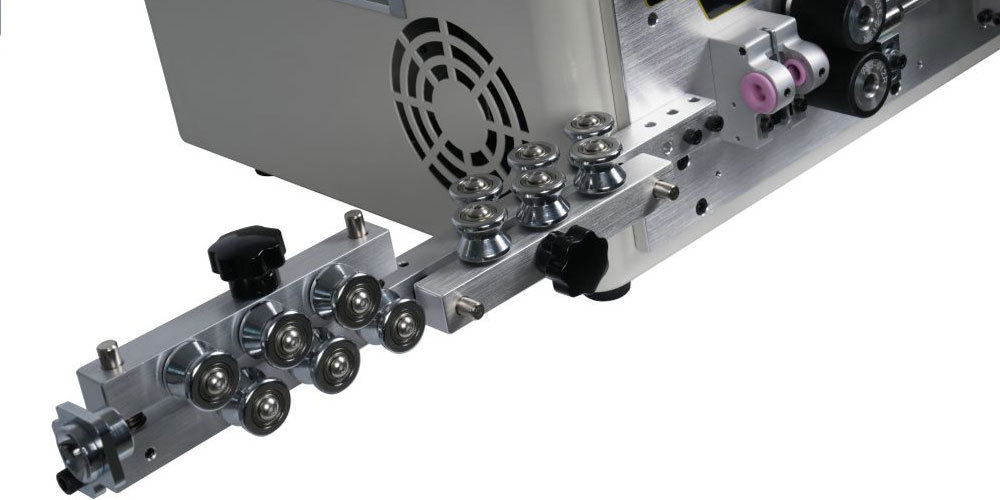

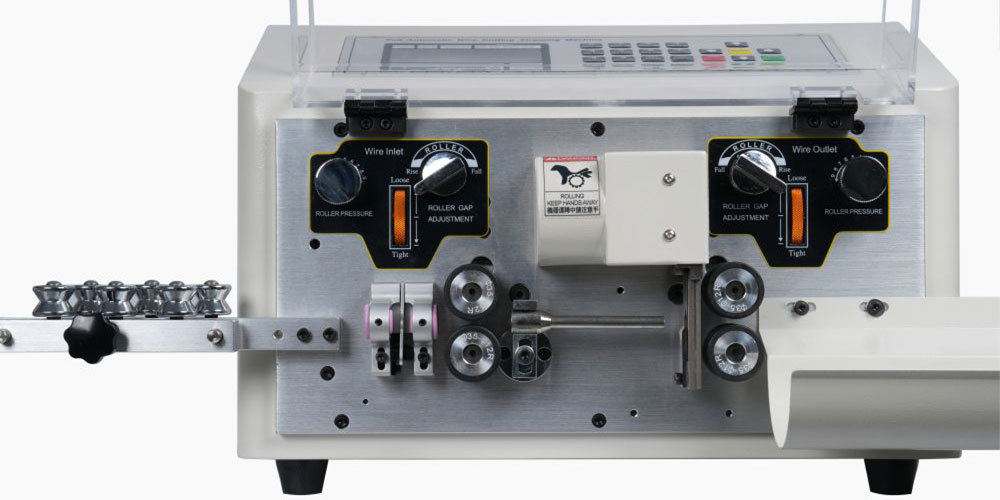

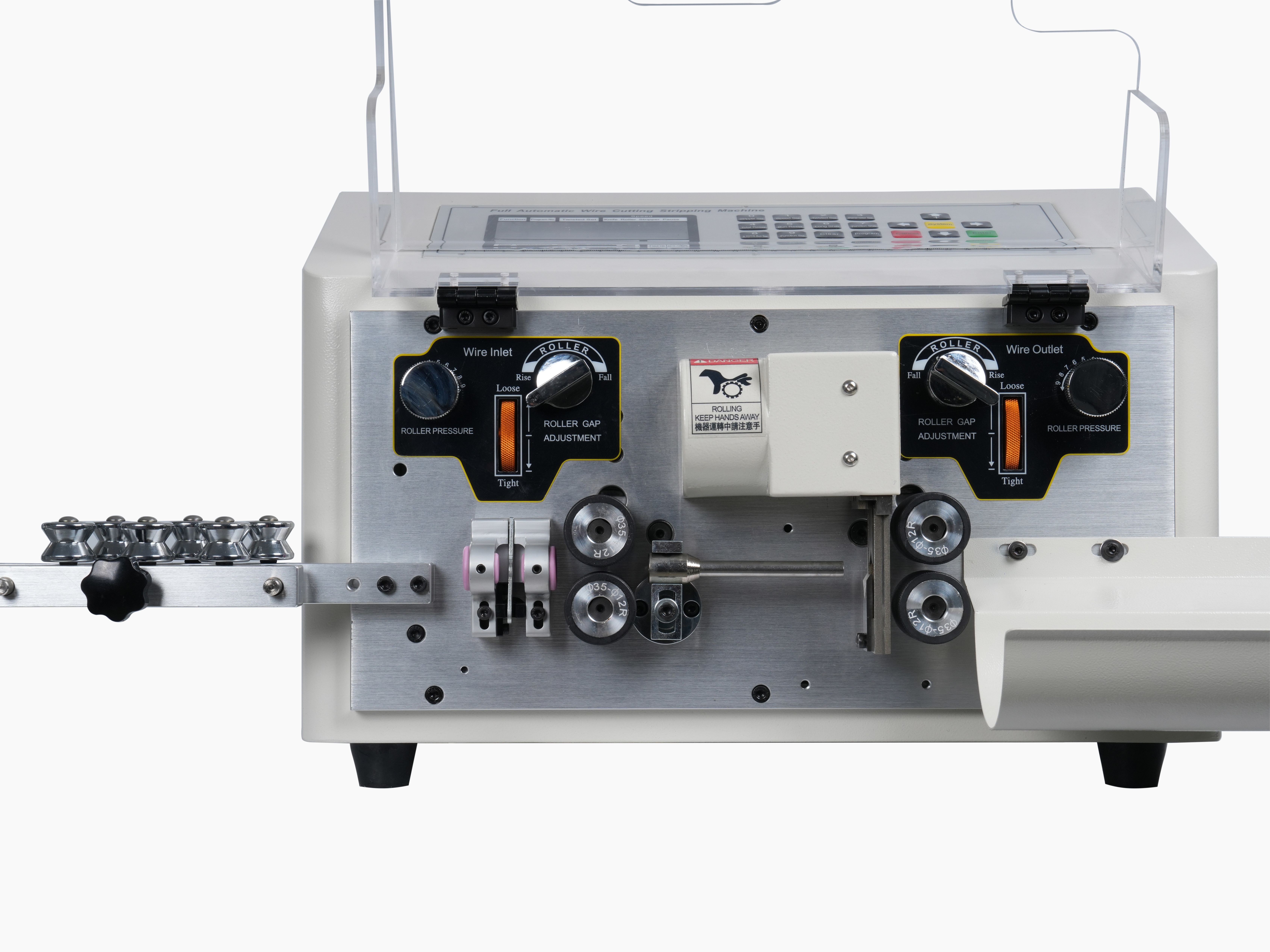

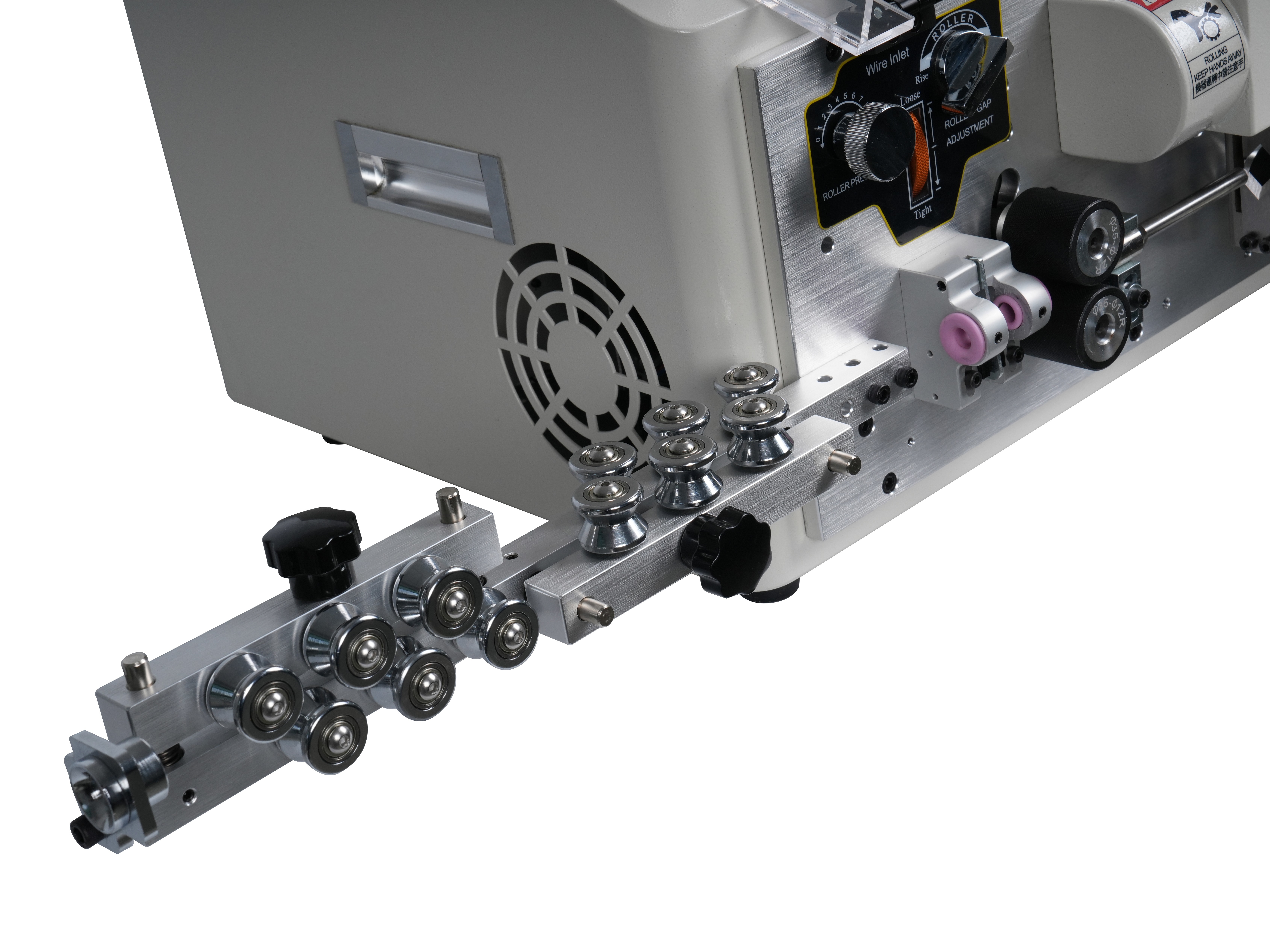

02 Quick
Adjustment
Easy to operate, can directly manually adjust the force
of the wire pressing wheel without the need for other tools.

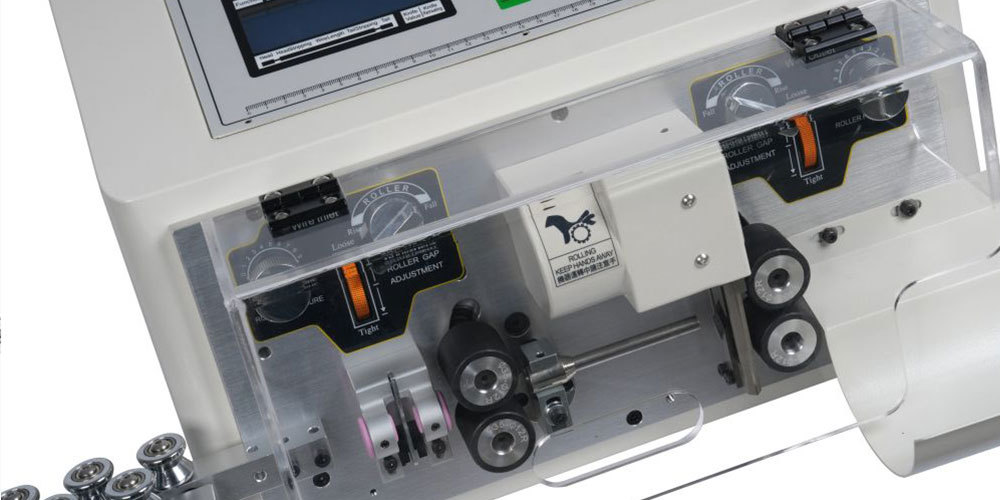

03 Selection of
Steel blades
Cutting wider, larger, and thicker, widely used,
with one blade that can be used multiple times
